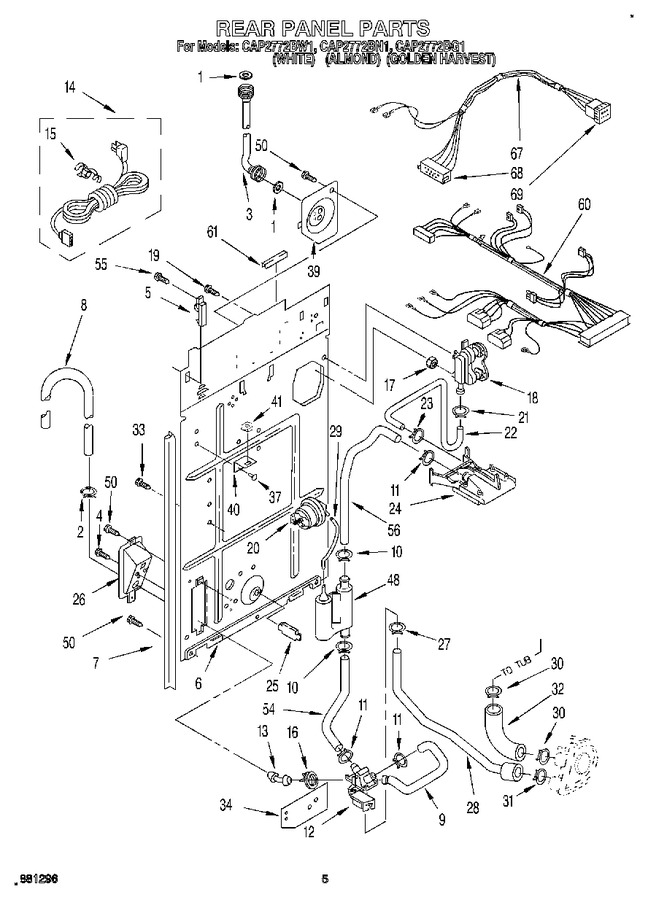

04 - Rear Panel


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Brake, Clutch, Gearcase, Motor And Pump


08 - Machine Base


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Gearcase


12 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
3	WP89503		Hose, Water Inlet (2)   (Replaces: 3358797)			Immediately	$ 21.68
4	3352299		Screw (2)		Appelez-nous	-
5	387402		Hinge, Console (2)				$ 5.84
6	3362720		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 3354204)				$ 23.63
8	WP96743		Hose, Rubber Drain   (Replaces: 96743)				$ 90.93
9	3358564		Hose-two Way Valve/ To Drain				$ 10.22
10	3363365		Clamp, Hose				$ 9.68
11	3363365		Clamp, Hose   (Replaces: 3358557)				$ 9.68
12	3358559		Valve, Two-way				$ 122.77
13	95440		Connector, Hose				$ 22.55
14	285928		Cord, Power   (Replaces: 3359548)				$ 118.00
15	W11733005		Strain Relief, Power Cord To Rear Panel   (Replaces: 63848)				$ 11.64
16	WP285655		Clamp, Hose   (Replaces: 660626)			Immediately	$ 7.55
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 3360391)			Immediately	$ 49.57
19	WP3390631		Screw, 10-24 X 3/8 (2)   (Replaces: 62863)				$ 7.04
20	3358570		Switch, Pressure (recirculate)				$ 52.87
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	3358550		Break, Vacuum		Appelez-nous	-
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	3358567		Bracket, Valve		Appelez-nous	-
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3358562		Hose, Pump To Two-way Valve				$ 29.47
29	WP353244		Hose, Pressure Switch   (Replaces: 3347781)			Immediately	$ 53.94
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
33	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
34	3363761		Shield, Valve		Appelez-nous	-
37	63554		Rivet		Appelez-nous	-
39	285930		Plate, Mixing Valve   (Replaces: 3347682)				$ 67.10
40	3347824		Bracket, Top Lock		Appelez-nous	-
41	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
48	3358556		Air-dome		Appelez-nous	-
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
54	3358563		Hose/two-way Valve To Air Dome				$ 9.74
55	WP308685		Screw, 10-16 X 1/2 Hinge To Rear Panel   (Replaces: 3357011)			Immediately	$ 7.08
56	3358555		Hose, Air-dome To Vacuum Break		Appelez-nous	-
60	3356360		Harness, Wiring (for Detail See Wiring Harness Parts Page.) Also See Clips.		Appelez-nous	-
61	303294		Edge Protector		Appelez-nous	-
67	3356359		Harness, Timer (includes Illus. 68 & 69)		Appelez-nous	-
68	W10876590		Block, Timer Disconnect   (Replaces: 352089)				$ 11.48
69	96895		Cap, Terminal		Appelez-nous	-
