01 - Cover Sheet
02 - Control Panel

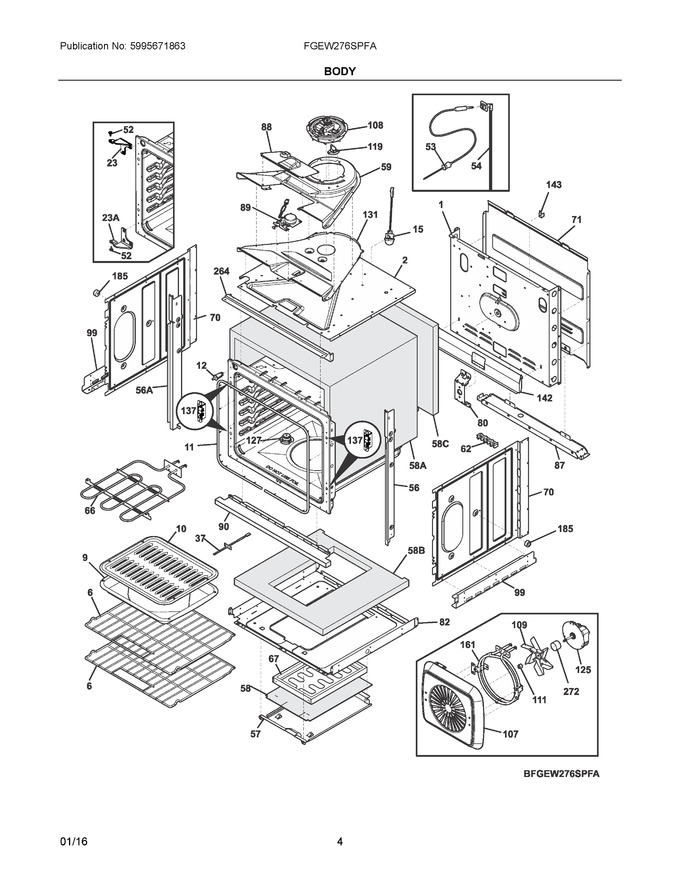

03 - Body
04 - Door
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139003804 | Panel, Main Back |
|
- | |||||
| 2 | 139027804 | Shield, Insulation, Top |
|
- | |||||
| 6 | 139011901 | Rack, Oven, W/handle (Replaces: 139011700) |
|
$ 36.24 | |||||
| 9 | 316081900 | Pan, Broiler Optional Accessory |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert, Broiler Pan Optional Accessory |
|
$ 68.85 | |||||
| 11 | 807545501 | Seal, Oven Door, Gray |
|
Immediately | $ 81.39 | ||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 23 | 808893101 | Hinge, Front Frame, Top |
|
Immediately | $ 31.19 | ||||
| 37 | 5304504897 | Sensor, Oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| 52 | 318074913 | Pin, Hinge, Black |
|
Immediately | $ 46.07 | ||||
| 53 | 5304504202 | Probe, Meat Temp, Red |
|
Immediately | $ 106.19 | ||||
| 54 | 139017203 | Receptacle Assy, Meat Probe |
|
Immediately | $ 153.09 | ||||
| 56 | 318903759 | Trim, Side, Black, Rh |
|
$ 74.42 | |||||
| 57 | 139021200 | Panel, Service, Bake Element |
|
$ 32.31 | |||||
| 58 | 139022100 | Insualtion, Bake Element |
|
- | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 85.76 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 66 | 5304523477 | Element, Broil, 6 Pass, 3400w (Replaces: 139028200) |
|
$ 235.85 | |||||
| 67 | 318902502 | Element, Hidden Bake, 1450w |
|
Immediately | $ 205.21 | ||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) (Replaces: 139000600) |
|
$ 72.05 | |||||
| 71 | 139022000 | Shield, Rear Wire, Main Back |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 139003101 | Shield, Insulation, Lower |
|
$ 91.01 | |||||
| 87 | 139021900 | Bracket, Cable Mtg.. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor (Replaces: 139027900) |
|
$ 24.10 | |||||
| 89 | 139078302 | Motor, Latch Assembly |
|
Immediately | $ 106.70 | ||||
| 90 | 318259864 | Trim, Base, Stainless (Replaces: 318259862) |
|
$ 182.76 | |||||
| 99 | 318256201 | Bracket, Side, Bottom, (2) |
|
$ 56.70 | |||||
| 107 | 139013903 | Cover, Convection Fan |
|
$ 46.86 | |||||
| 108 | 318575612 | Motor Assembly, Cooling Fan |
|
Immediately | $ 196.61 | ||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 119 | 318578506 | Thermostat, Safety, 105c |
|
Immediately | $ 58.19 | ||||
| 125 | 139008500 | Motor, Convection Fan |
|
Immediately | $ 216.23 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 73.00 | |||||
| 137 | 318090310 | Latch, Door |
|
Immediately | $ 44.61 | ||||
| 142 | 139021800 | Shield, Air Deflector, Main Back |
|
- | |||||
| 143 | 318172904 | Support, Wire |
|
- | |||||
| 161 | 8581390065036 | Element, Convection, 2500w (Replaces: 139006500) |
|
$ 47.63 | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 12.76 | |||||
| 264 | 808877504 | Trim, Vent, Black |
|
Immediately | $ 116.95 | ||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 23A | 808893102 | Hinge, Front Frame, Bottom |
|
Immediately | $ 29.06 | ||||
| 56A | 318903760 | Trim, Side, Black, Lh |
|
$ 70.88 | |||||
| 58A | 5304504199 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 139021501 | Insulation, Oven Bottom |
|
$ 31.19 | |||||
| 58C | 139021401 | Insulation, Oven Back |
|
- | |||||
| NI | 5304470882 | Screw, Anti-tip, 8 - 5/8, Black, (2) |
|
$ 13.46 | |||||
| NI | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 | |||||
| NI | 5304436875 | Screw, 8-18 X 1/2, Black, (3) |
|
$ 14.41 | |||||
| NI | 5304506983 | Box & Wires Assy (Replaces: 318394441) |
|
$ 133.47 | |||||
| NI | 5304490877 | Harness, Wiring, Main |
|
$ 147.88 | |||||
| NI | 5304517285 | Harness Assembly, Filter, Electrical, W/capacitors (Replaces: 5304500988) |
|
$ 38.68 | |||||
| NI | 5303321211 | Washer, Black, (2) |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 318231870 | Wiring Harness, Bake Element |
|
$ 83.42 | |||||
| NIA | 318579001 | Bracket, Wire |
|
$ 11.08 | |||||
| NIA | 5304497581 | Screw, Latch, #8-32 X 3/16, (4) |
|
- | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NIA | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIA | 807448005 | Harness, Wiring, Mdl Ads |
|
- | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIB | 5304504203 | Washer, Door Lock, Black |
|
- | |||||
| NIB | 5303288566 | Screw, 8 X 1/4, (4) (Replaces: 5303323130) |
|
$ 2.12 | |||||
| NIB | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 5.67 |
