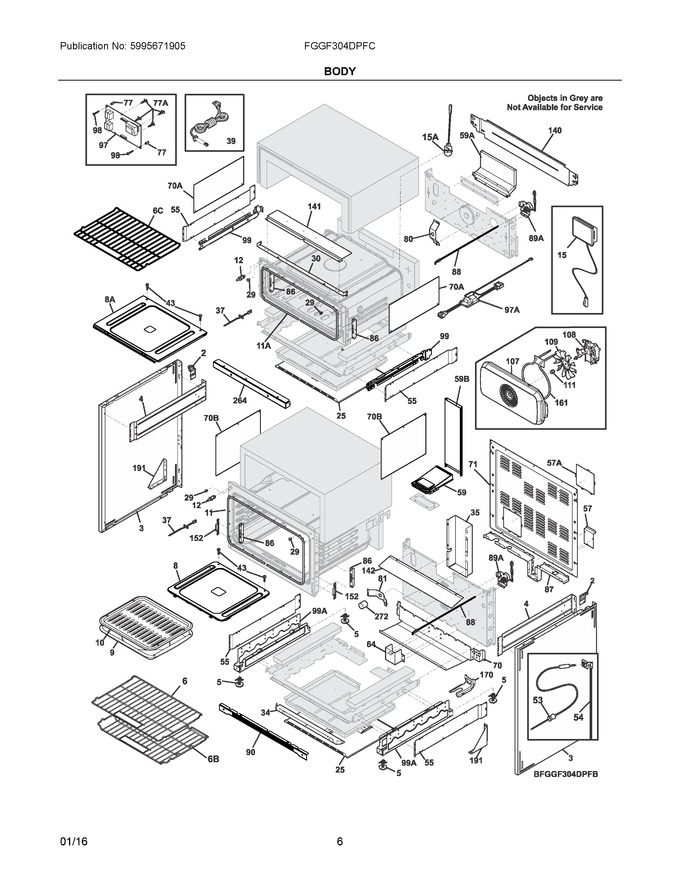

04 - Body


05 - Main Top


06 - Doors


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	807251601		Clip, Mounting, Backguard (2)		Appelez-nous	-
3	807226106		Panel, Bodyside, Black, (2)				$ 136.69
4	807251501		Bracket, Support, Backguard (2)		Appelez-nous	-
5	318175510		Screw, Leveling, W/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	139011600		Rack, Oven, W/handle				$ 124.74
8	139073101		Panel, Oven Bottom		Appelez-nous	-
9	318138801		Pan, Broiler Optional Accessory		Appelez-nous	-
10	318126401		Insert, Broiler Pan Optional Accessory		Appelez-nous	-
11	139098502		Seal, Oven Door, Gray				$ 86.47
12	316445500		Switch, Oven Light, Door Frame   (Replaces: 316445507)			Immediately	$ 54.74
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
25	318291900		Bracket, Shield, Lower				$ 94.27
29	316517600		Spacer, Oven Door				$ 12.05
30	318405703		Bracket, Cooktop Mtg, Black		Appelez-nous	-
34	318289402		Panel, Valve Filler		Appelez-nous	-
35	318938310		Deflector, Flue		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
39	5304534000		Cord, Electric Power   (Replaces: 807108201)			Immediately	$ 33.37
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
55	318535405		Bracket, Side, (4)				$ 42.32
57	318584100		Cover, Back		Appelez-nous	-
59	139071700		Flue Assembly, Lower Oven		Appelez-nous	-
64	318574201		Bracket, Bake Mixer Mtg, Lower Oven		Appelez-nous	-
70	318574103		Panel, Floor Protect, Rear		Appelez-nous	-
71	318405404		Panel, Rear, Lower		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 44.65
80	5303320846		Plate, Oven Mtg				$ 51.50
81	139021101		Bracket, Support, Chassis/fan				$ 14.89
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	318937301		Bracket, Cable Mtg.		Appelez-nous	-
88	318250207		Rod, Latch, W/bushing				$ 62.95
90	318405203		Trim, Bottom, Black				$ 56.70
97	316443932		Board, Relay				$ 311.28
98	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
99	318252808		Support, Side		Appelez-nous	-
107	5304494168		Cover, Convection Fan				$ 117.85
108	316256900		Motor-fan				$ 191.27
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
140	318935300		Bracket, Chassis Support, Rear		Appelez-nous	-
141	5304499705		Deflector, Top		Appelez-nous	-
142	318938401		Panel, Insulation, Retainer		Appelez-nous	-
152	318338520		Bracket, Lateral Panel, (2)				$ 18.38
161	316211603		Element, Convection Fan, 350 W				$ 255.86
170	318584501		Anti Tip Kit, Assembly, W/template		Appelez-nous	-
191	318322801		Angle, Rear Plenum, (2)		Appelez-nous	-
264	808062601		Spacer, Front Frame		Appelez-nous	-
272	139021701		Tube, Convection Fan		Appelez-nous	-
11A	139079202		Seal, Door, Upper Oven		Appelez-nous	-
15A	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
57A	318407100		Panel, Access		Appelez-nous	-
59A	318942901		Flue Assembly		Appelez-nous	-
59B	807651201		Flue Assembly, Connector		Appelez-nous	-
6B	139012400		Rack, Oven, Offset, W/handle				$ 181.34
6C	318922316		Rack, Oven		Appelez-nous	-
70A	5304499695		Shield, Side, Upper, (2)		Appelez-nous	-
70B	5304499694		Shield, Side, Lower, (2)		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
89A	318095967		Motor, Latch Assy, W/brkt & Switch				$ 238.62
8A	139074200		Cover, Oven Bottom		Appelez-nous	-
97A	808743401		Board, Emi Filter, W/harness				$ 38.69
99A	808062401		Suuport, Base Rail		Appelez-nous	-
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304502300		Harness, Wiring, Main		Appelez-nous	-
NI	808189201		Shield, Floor		Appelez-nous	-
NI	5304502301		Shield, Bodyside, Top		Appelez-nous	-
NI	318938701		Plate, Cover, Upper Oven, Temp Sensor		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	318167300		Clip, Rod				$ 2.84
NIA	808993001		Harness, Wiring, Door Switch		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316355100		Insulation, Flue/side/door		Appelez-nous	-
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIAA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIB	5303311164		Spring				$ 18.95
NIC	5304436864		Washer, Flat				$ 2.84
