SELECT A DIAGRAM

01 - Cover Sheet


02 - Lower Cabinet And Front Panel Parts

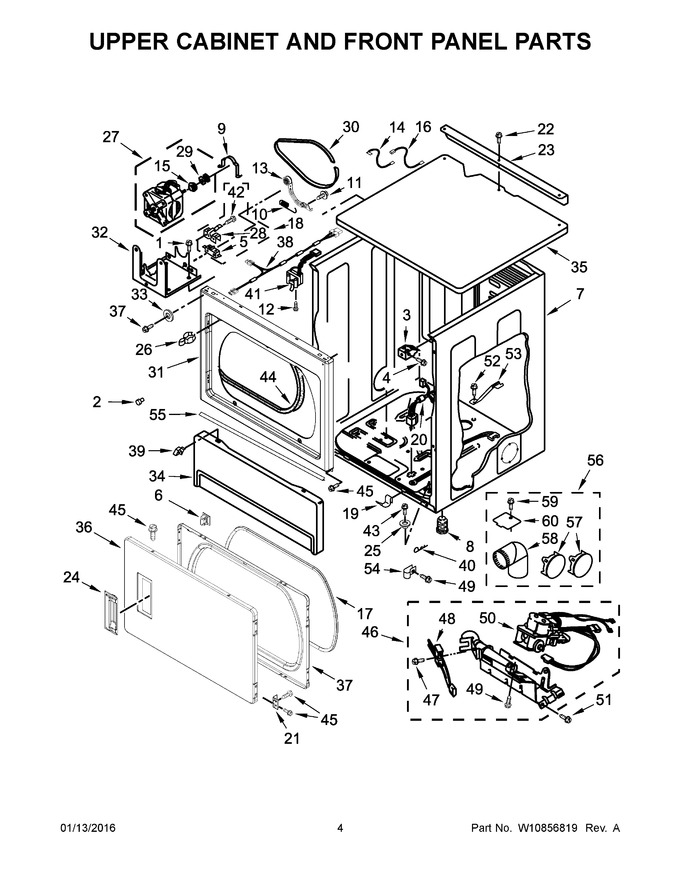

03 - Upper Cabinet And Front Panel Parts


04 - Control Panel And Separator Parts


05 - Upper And Lower Bulkhead Parts


06 - Burner Assembly


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.07
2	693152		Bumper				$ 9.86
3	3391846		Clip, Front Panel				$ 19.04
4	681615		Screw   (Replaces: 3391915)				$ 12.49
5	279782		Switch - Belt   (Replaces: 3394881)			Immediately	$ 49.00
6	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 377.29
8	WP689172		Foot, Dryer Plastic   (Replaces: 689172)				$ 73.30
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.05
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 22.11
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.22
12	WP3395530		Screw   (Replaces: 697773)				$ 6.93
13	WPW10344193		Pulley-idler Assembly   (Replaces: W10344193)			Immediately	$ 75.39
14	3398948		Wire, Jumper (broken Belt Switch)				$ 55.42
15	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 119.21
16	279782		Switch - Belt   (Replaces: 3394881)			Immediately	$ 49.00
17	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
18	279782		Switch Assembly   (Replaces: 8066134)			Immediately	$ 49.00
19	WPW10291934		Clip   (Replaces: W10291934)				$ 6.98
20	W10702042		Harness		Appelez-nous	-
21	WPW10279703		Hinge & Pin Assembly (silver)   (Replaces: W10279703)				$ 65.00
22	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
23	3979115		Bracket, Angle		Appelez-nous	-
24	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 68.18
25	3389233		Bushing		Appelez-nous	-
26	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
27	W10841144		Motor   (Replaces: W10396031)			Immediately	$ 210.88
28	WP8066120		Lever Switch   (Replaces: 8066120)			Immediately	$ 29.80
29	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 45.92
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	W10234293		Panel, Front		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 120.23
33	W11089212		Washer   (Replaces: 3392186)				$ 8.70
34	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 214.50
35	3389351		Top (white)		Appelez-nous	-
36	W11663440		Door, Front   (Replaces: W10322546)				$ 233.43
37	280083		Door, Rear   (Replaces: W10323061)				$ 258.32
38	W10769483		Jumper, Door Switch		Appelez-nous	-
39	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
40	W10117347		Cotter Pin		Appelez-nous	-
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 50.08
42	WP98129		Screw   (Replaces: 98129)				$ 6.80
43	3400523		Bolt, Security		Appelez-nous	-
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw   (Replaces: 342055)				$ 6.81
46	3401797		Burner Assembly (60 Hz)		Appelez-nous	-
47	WPW10366705		Screw   (Replaces: 3393909)				$ 6.75
48	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
49	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 6.47
50	279923		Valve, Gas (complete) 60 Hz   (Replaces: 8281911)			Immediately	$ 257.43
51	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
52	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.47
53	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
54	3387561		Clamp, Pipe		Appelez-nous	-
55	W10576519		Seal, Deflector		Appelez-nous	-
56	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting), (white)   (Replaces: 279818)			Immediately	$ 68.99
57	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 68.99
58	279731		Elbow (4")		Appelez-nous	-
59	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.01
60	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.06

    View Diagram in Separate Window       Print Part List
