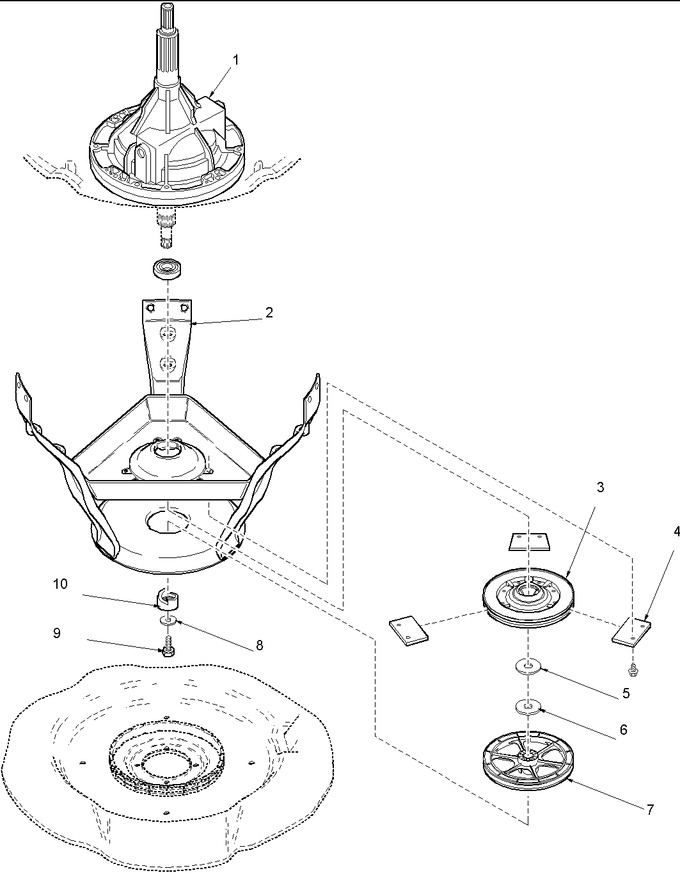

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40065301		Assembly, Transmission (640)		Appelez-nous	-
2	40070002		Assembly, Milk Stool		Appelez-nous	-
3	40003103		Brake Assembly		Appelez-nous	-
4	735P3		Kit, Brake Pad   (Replaces: R0000014)			Immediately	$ 40.33
5	40065701		Washer, 2 Odx.63 Id				$ 8.22
6	40063201		Washer, Flat		Appelez-nous	-
7	40047202		Pulley, Spin				$ 48.68
7	40047201		Pulley,spin 640 Rpm		Appelez-nous	-
8	40041501		Washer				$ 32.07
9	40063401		Screw, 1/4-20x5/8 Hex				$ 38.22
10	40047402		Helix, Plastic				$ 16.19
10	40047401		Helix, Plastic		Appelez-nous	-
NI	WP26594P		Grease, Silicone - 2oz Tube   (Replaces: 26594P)				$ 75.86
