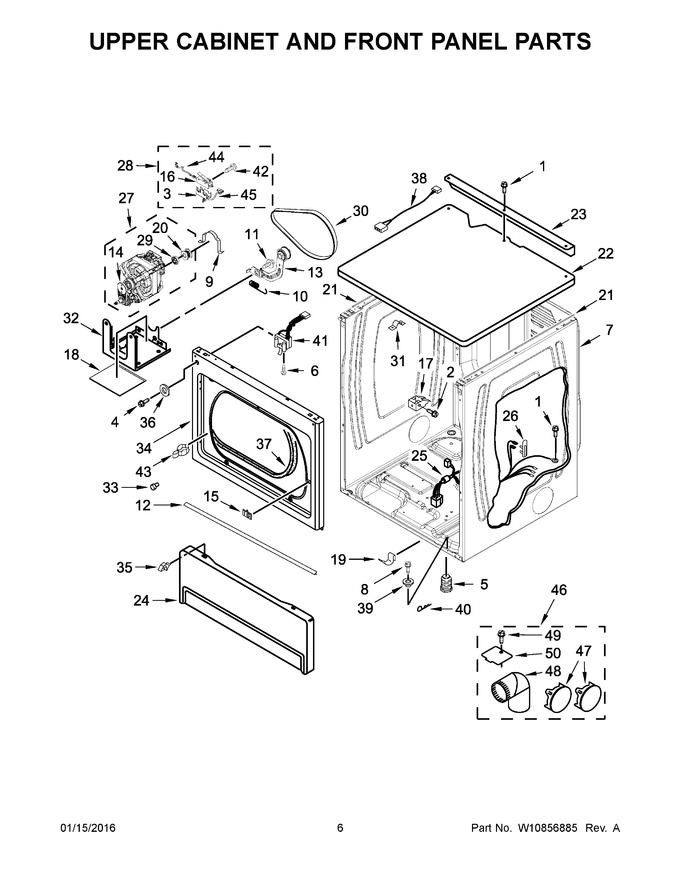

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 2 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 3 | 8564011 | Bracket, Switch |
|
$ 16.35 | |||||
| 4 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.25 | |||||
| 5 | WP689172 | Foot, Dryer Plastic (Replaces: 689172) |
|
$ 73.30 | |||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 377.29 | |||||
| 8 | 3400523 | Bolt, Security |
|
- | |||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | W10576519 | Seal, Deflector |
|
- | |||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 81.06 | ||||
| 14 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| 15 | W10521429 | Cover, Strike (white) |
|
- | |||||
| 16 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 89.24 | |||||
| 17 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 18 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 19.96 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 6.98 | |||||
| 20 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 21 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 34.04 | |||||
| 22 | 3389351 | Top (white) |
|
- | |||||
| 23 | 3979115 | Bracket, Angle |
|
- | |||||
| 24 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 25 | W10807486 | Harness, Upper/lower |
|
- | |||||
| 26 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 27 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10396034) |
|
Immediately | $ 371.89 | ||||
| 28 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 23.76 | |||||
| 29 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 31 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 33 | 693152 | Bumper |
|
$ 9.86 | |||||
| 34 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 245.28 | |||||
| 35 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 36 | W11089212 | Washer (Replaces: 3392186) |
|
$ 8.70 | |||||
| 37 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 75.36 | |||||
| 39 | 3389233 | Bushing |
|
- | |||||
| 40 | W10117347 | Cotter Pin |
|
- | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 50.08 | ||||
| 42 | WP98129 | Screw (Replaces: 98129) |
|
$ 6.80 | |||||
| 43 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 44 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 45 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 46 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), (white) (Replaces: 279818) |
|
Immediately | $ 68.99 | ||||
| 47 | WPW10404617 | Plug, Multivent (white) (Replaces: 49252) |
|
$ 64.78 | |||||
| 48 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 24.14 | |||||
| 49 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.01 | ||||
| 50 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 |
