01 - Cover Sheet

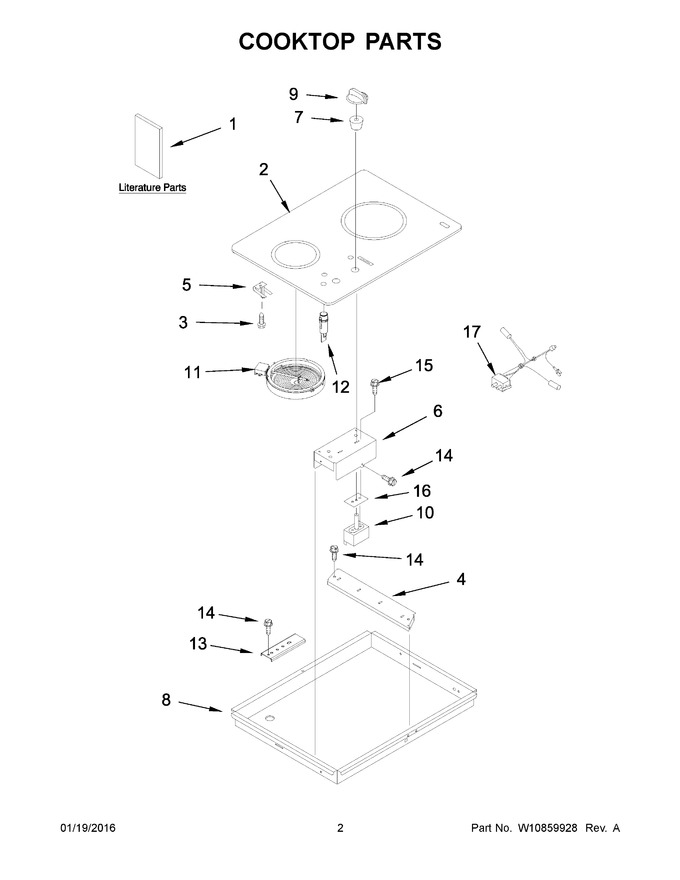

02 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10841974		Instructions, Installation		Appelez-nous	-
2	W10863021		Cooktop   (Replaces: W10840107)		Appelez-nous	-
3	WP486754		Screw   (Replaces: 246119)				$ 6.75
4	3192721		Rail, Element Support		Appelez-nous	-
5	9759094		Spring, Locator				$ 6.34
6	W10414006		Bracket, Mounting				$ 69.52
7	8285469		Grommet (black)				$ 45.00
8	8286988		Box, Burner		Appelez-nous	-
9	W10720680		Knob, Control		Appelez-nous	-
10	WP3191049		Switch, Infinite (left Front)   (Replaces: 3191049)				$ 150.25
11	W11171119		Element (1200w) (left Front)   (Replaces: 8273994)			Immediately	$ 164.01
12	3193012		Light, Indicator				$ 99.17
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 79.60
14	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	3183956		Seal, Switch Cover				$ 41.81
17	3192612		Lamp, Hot Surface Indicator		Appelez-nous	-
10A	WP3191050		Switch, Infinite (left Rear)   (Replaces: 3191050)			Immediately	$ 149.72
11A	WP8273993		Element (1800w) (left Rear)   (Replaces: 8273993)			Immediately	$ 220.06
1A	W10840249		Guide, Use & Care		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
NI	4455364		Wiring Harness Parts, Bracket, Support				$ 82.35
NI	W10488352		Wiring Harness Parts, Harness, Main		Appelez-nous	-
NI	W10478329		Wiring Harness Parts, Jumper		Appelez-nous	-
NI	W11171891		Wiring Harness Parts, Harness, Main   (Replaces: W10631476)				$ 197.43
NI	W10491984		Wiring Harness Parts, Seal, Limiter   (Replaces: 3192439)				$ 10.33
NI	W10742186		Wiring Harness Parts, Assembly, Conduit		Appelez-nous	-
NI	WP98997		Wiring Harness Parts, Clip   (Replaces: 98997)				$ 9.98
NI	W10355010		Accessories, Cleaner, Kitchen & Appliance		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
