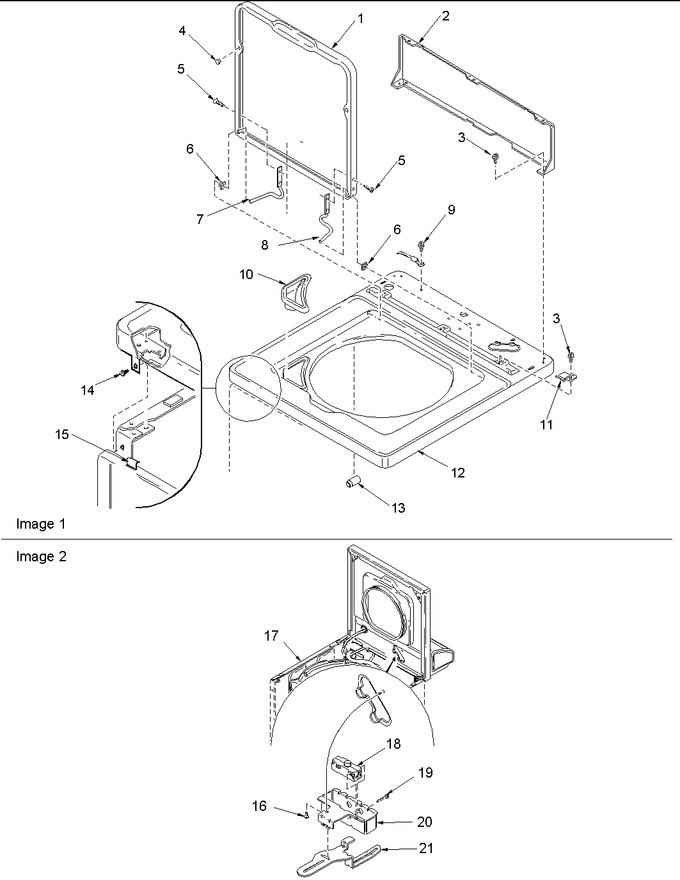

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40111301W		Lid,w/instructions		Appelez-nous	-
2	40121402		Panel, Back		Appelez-nous	-
2	40051401		Panel,home Hood Back		Appelez-nous	-
3	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
4	40038001		Bumper				$ 8.44
5	WPW10119828		Screw, 6-32x.340 Flat   (Replaces: 40039201)			Immediately	$ 6.47
6	33446		Bushing, Hinge   (Replaces: 40008201)			Immediately	$ 6.95
7	40094002		Hinge, Lid Left Stop		Appelez-nous	-
8	40094101		Hinge, Lid Right Pass		Appelez-nous	-
9	WP3351614		Screw, 10-24x3/8 Hex   (Replaces: 20530)			Immediately	$ 6.26
10	202996		Dispenser, Bleach   (Replaces: 40093901)				$ 6.95
11	35358		Clip, Hold Down   (Replaces: 40063901)				$ 6.95
12	40000202W		Panel, Top (wht)		Appelez-nous	-
13	40102101		Cap, Hinge		Appelez-nous	-
14	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
15	WP22001650		Clip, Spring   (Replaces: 56080)			Immediately	$ 7.34
16	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
17	40076402W		Cabinet, Dryer (wht)		Appelez-nous	-
18	40035001		Switch, Spst		Appelez-nous	-
19	40040701		Screw, Tapping No.6b-20		Appelez-nous	-
20	40009801		Holder, Lid Switch		Appelez-nous	-
21	40009701		Arm, Lid Switch		Appelez-nous	-
