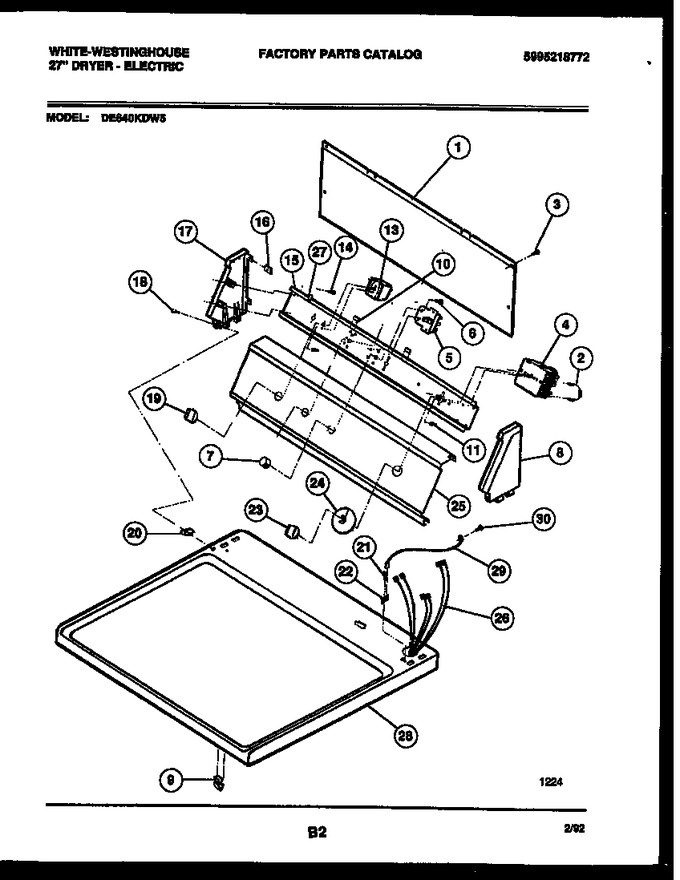

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205838 | Back Cover |
|
- | |||||
| 2 | 3281110 | Resistor |
|
- | |||||
| 3 | 3261048 | Screw (4) |
|
- | |||||
| 4 | 5303269972 | Bracket, Grounding |
|
- | |||||
| 4 | 5300634301 | Timer |
|
- | |||||
| 5 | 3201219 | Switch - Start |
|
- | |||||
| 6 | 08001544 | Screw |
|
- | |||||
| 7 | 3201220 | Pushbutton |
|
- | |||||
| 8 | 3205840 | End Cap-rh |
|
- | |||||
| 8 | 5303015671 | Screw |
|
- | |||||
| 9 | 3205821 | Spring Catch (2) |
|
Immediately | $ 35.44 | ||||
| 9 | 5303269973 | Duct, Exhaust |
|
- | |||||
| 10 | 5303281201 | Pad (2) |
|
- | |||||
| 10 | 5303281079 | Wheel, Blower |
|
$ 219.03 | |||||
| 11 | 5303281080 | Cover, Fan |
|
- | |||||
| 11 | 3281096 | Screw (2) |
|
- | |||||
| 12 | 5303212834 | Clamp, Motor |
|
$ 3.78 | |||||
| 12 | 3281101 | Screw (2) |
|
- | |||||
| 13 | 5303283470 | Motor & Pulley |
|
$ 414.17 | |||||
| 13 | 3281187 | Switch-selector |
|
- | |||||
| 14 | 3281035 | Screw (4) |
|
- | |||||
| 15 | 3205841 | Mounting Bracket |
|
- | |||||
| 16 | 5308014350 | Clip (8) |
|
- | |||||
| 16 | 3281120 | Screw-ground |
|
- | |||||
| 17 | 3205842 | End Cap-lh |
|
- | |||||
| 17 | 134503600 | Belt (Replaces: 5303283471) |
|
Immediately | $ 18.79 | ||||
| 18 | 5303212849 | Idler Assembly |
|
$ 20.69 | |||||
| 18 | 3281023 | Screw (2) |
|
- | |||||
| 19 | 5308015435 | Knob-rotary |
|
$ 44.29 | |||||
| 19 | 3261230 | Screw-stop |
|
- | |||||
| 20 | 3281073 | Screw |
|
- | |||||
| 20 | 3281192 | Grommet (2) |
|
- | |||||
| 21 | 5303281076 | Spacer |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 22 | 5379171000 | Terminal |
|
- | |||||
| 22 | 5303281085 | Spring, Idler |
|
$ 13.01 | |||||
| 23 | 3201239 | Cradle-motor |
|
- | |||||
| 23 | 08015435 | Knob-timer |
|
- | |||||
| 24 | 08015434 | Pointer |
|
- | |||||
| 24 | 5303281083 | Spring |
|
- | |||||
| 25 | 5303269473 | Trim-plate |
|
- | |||||
| 25 | 3281036 | Screw (4) |
|
- | |||||
| 26 | 3281077 | Screw |
|
- | |||||
| 26 | 5303270867 | Harness |
|
- | |||||
| 27 | 3281200 | Ground Clip |
|
- | |||||
| 28 | 5303273262 | Top Panel Almond |
|
- | |||||
| 29 | 3201308 | Ground Wire |
|
- | |||||
| 30 | 3281120 | Ground Screw |
|
- | |||||
| 26A | 3281103 | Wire Tie (3) (non-illustrated) |
|
- |
