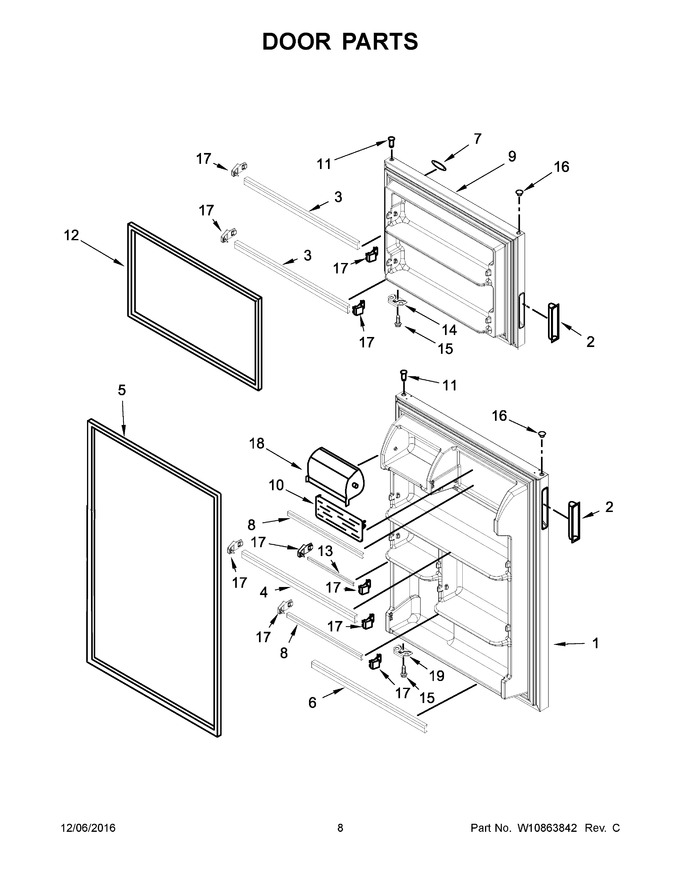

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10680725		Refrigerator Door (includes Door Gasket & Door Handle) (black)   (Replaces: W10680725)				$ 618.77
2	W10174743		Handle, Cup (black)				$ 13.65
3	W11126055		Trim, Door   (Replaces: W10719702)			Immediately	$ 109.15
4	W11170805		Trim, Door   (Replaces: W10678772)				$ 109.15
5	W11240749		Door Gasket, Magnetic (black)   (Replaces: W10678768)			Immediately	$ 257.73
6	W11097831		Trim, Door   (Replaces: W10719703)				$ 10.54
7	W11428492		Badge (white)   (Replaces: W10200425)				$ 71.63
8	W11129820		Trim, Door   (Replaces: W10719700)			Immediately	$ 109.15
9	LW10680728		Freezer Door (includes Door Gasket & Door Handle) (black)   (Replaces: W10680728)				$ 593.15
10	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 51.70
11	WP2183003		Thimble   (Replaces: 2262054)				$ 6.98
12	W11229610		Door Gasket, Magnetic (black)   (Replaces: W10667843)			Immediately	$ 257.73
13	W11106290		Trim, Shelf Door   (Replaces: W10719701)			Immediately	$ 109.15
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
16	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 20.75
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.36
18	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 45.30
19	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 58.98
1A	LW10798950		Refrigerator Door (includes Door Gasket & Door Handle) (stainless)   (Replaces: W10798950)				$ 720.06
2A	W10631993		Handle, Cup (grey)		Appelez-nous	-
9A	LW10798951		Freezer Door (includes Door Gasket & Door Handle) (stainless)   (Replaces: W10798951)				$ 704.75
