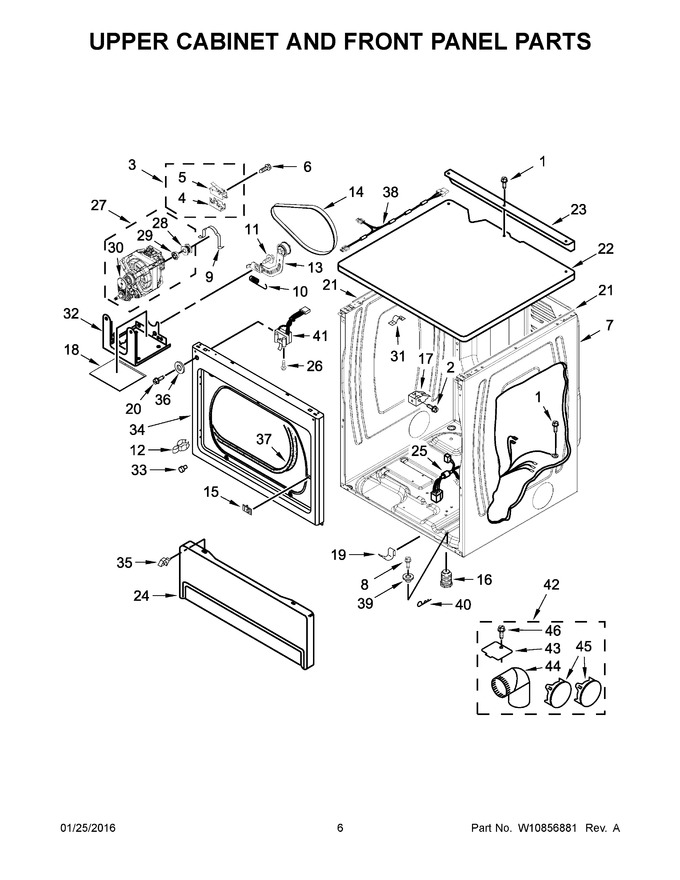

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 2 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 3 | W11236387 | Assembly, Switch (Replaces: W10259136) |
|
- | |||||
| 4 | 8564011 | Bracket, Switch |
|
$ 16.35 | |||||
| 5 | W10410873 | Assembly, Switch Actuator |
|
- | |||||
| 6 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 377.29 | |||||
| 8 | 3400523 | Bolt, Security |
|
- | |||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 81.06 | ||||
| 14 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 15 | W10521429 | Cover, Strike (white) |
|
- | |||||
| 16 | WP689172 | Foot, Dryer Plastic (Replaces: 689172) |
|
$ 73.30 | |||||
| 17 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 18 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 19.96 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 6.98 | |||||
| 20 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.25 | |||||
| 21 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 34.04 | |||||
| 22 | 3389351 | Top (white) |
|
- | |||||
| 23 | 3979115 | Bracket, Angle |
|
- | |||||
| 24 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 25 | W11352125 | Harness, Upper/lower (Replaces: W10807491) |
|
- | |||||
| 26 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 27 | W11215537 | Assembly, Motor 50 Hz. (Replaces: W10747112) |
|
$ 480.41 | |||||
| 28 | W10167237 | Pulley |
|
- | |||||
| 29 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 30 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| 31 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 33 | 693152 | Bumper |
|
$ 9.86 | |||||
| 34 | W11101559 | Panel, Front (Replaces: W10694721) |
|
- | |||||
| 35 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 36 | W11089212 | Washer (Replaces: 3392186) |
|
$ 8.70 | |||||
| 37 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 38 | W10231861 | Jumper, Door Switch |
|
- | |||||
| 39 | 3389233 | Bushing |
|
- | |||||
| 40 | W10117347 | Cotter Pin |
|
- | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 50.08 | ||||
| 42 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 68.99 | ||||
| 43 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 44 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 24.14 | |||||
| 45 | WPW10404617 | Plug, Multivent (white) (Replaces: 49252) |
|
$ 64.78 | |||||
| 46 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.01 |
