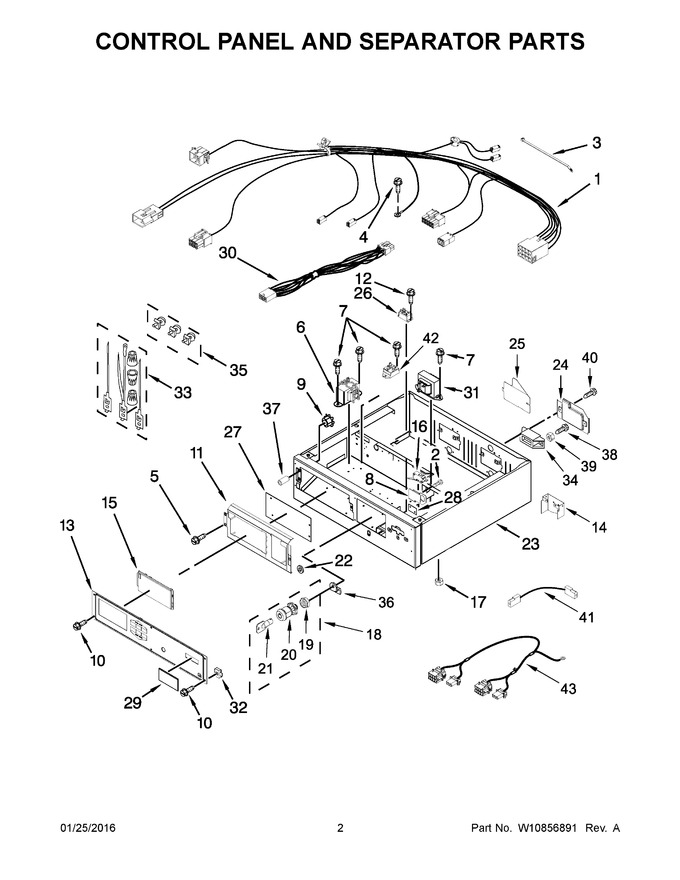

02 - Control Panel And Separator Parts


03 - Lower Cabinet And Front Panel Parts


04 - Upper Cabinet And Front Panel Parts


05 - Door Parts


06 - Upper And Lower Bulkhead Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11352125		Harness, Collar   (Replaces: W10807492)		Appelez-nous	-
2	3400408		Screw		Appelez-nous	-
3	WPW10155270		Tie, Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw   (Replaces: W10773242)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	W10160652		Bracket-switch		Appelez-nous	-
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
13	W10678233		Facia Console		Appelez-nous	-
14	W10192090		Bracket, Terminal Block				$ 92.91
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	W10133281		Switch, Service Access		Appelez-nous	-
17	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 7.64
18	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 125.12
19	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 125.12
20	W11395752		Nut, Hex   (Replaces: W10139762)				$ 11.74
21	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
22	2006252		Washer, Nylon		Appelez-nous	-
23	W11101562		Collar   (Replaces: W10862446)		Appelez-nous	-
24	W10850065		Cover, Terminal Block		Appelez-nous	-
25	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
26	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
27	W11398779		Control Board   (Replaces: W10678221)				$ 519.78
28	W10151156		Shield, Sensor Switch		Appelez-nous	-
29	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
30	W10111027		Jumper, Transformer				$ 41.23
31	W10237958		Transformer, 240 - 120 Vac		Appelez-nous	-
32	W10145157		Retainer, Facia Cover		Appelez-nous	-
33	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 90.89
34	W11690172		Terminal-block   (Replaces: W10237321)				$ 340.88
35	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
36	W10233256		Cam, Locking Iec				$ 66.19
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
39	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.16
40	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.04
41	W10769481		Jumper, Coin Box		Appelez-nous	-
42	W10827406		Relay, Motor		Appelez-nous	-
43	W10807493		Jumper, Lower To Collar		Appelez-nous	-
