SELECT A DIAGRAM

01 - Cover Sheet

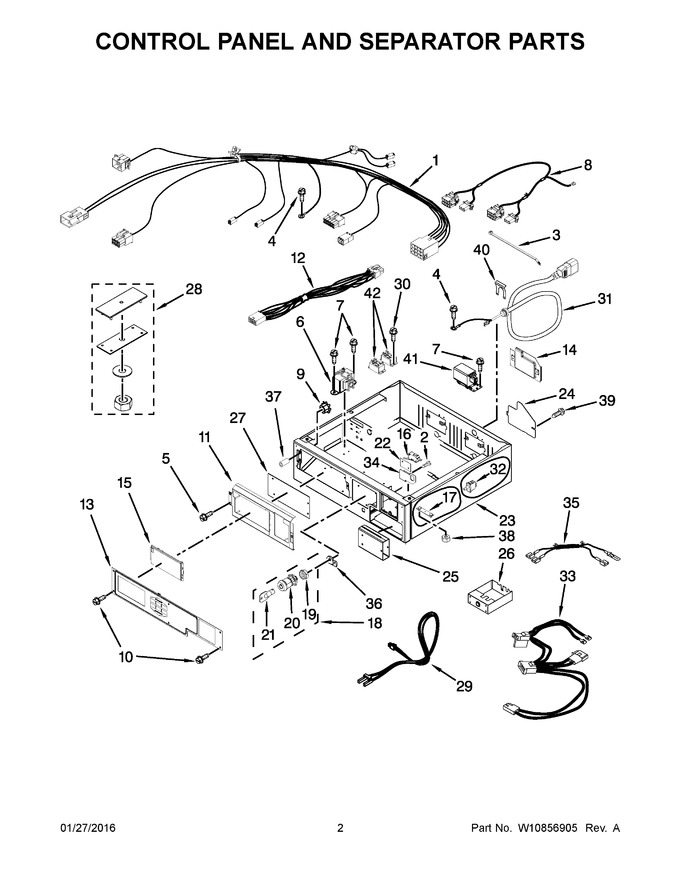

02 - Control Panel And Separator Parts


03 - Lower Cabinet And Front Panel Parts


04 - Upper Cabinet And Front Panel Parts


05 - Door Parts


06 - Upper And Lower Bulkhead Parts


07 - Burner Assembly


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11352073		Harness, Collar   (Replaces: W10807490)		Appelez-nous	-
2	3400408		Screw		Appelez-nous	-
3	WPW10155270		Tie, Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw   (Replaces: W10773242)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	W10807493		Jumper, Lower To Collar		Appelez-nous	-
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	W10111027		Jumper, Transformer				$ 41.23
13	W10678231		Facia Console		Appelez-nous	-
14	W10850065		Cover, Terminal Block		Appelez-nous	-
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	W10133281		Switch, Service Access		Appelez-nous	-
17	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
18	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 125.12
19	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 125.12
20	W11395752		Nut, Hex   (Replaces: W10139762)				$ 11.74
21	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
22	W10151156		Shield, Sensor Switch		Appelez-nous	-
23	W10862445		Collar		Appelez-nous	-
24	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
25	W11204020		Assembly, Vault Body   (Replaces: W10133258)				$ 361.48
26	W11204019		Box, Coin   (Replaces: W10133248)				$ 140.45
27	W11398779		Control Board   (Replaces: W10678221)				$ 519.78
28	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 113.40
29	W10226074		Coin-optic Sensor Assembly		Appelez-nous	-
30	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
31	WPW10476824		Cord, Power   (Replaces: W10476824)				$ 23.35
32	W11123448		Switch, Vault Service Door   (Replaces: W10133289)		Appelez-nous	-
33	W10250902		Harness, Gas		Appelez-nous	-
34	W10160652		Bracket-switch		Appelez-nous	-
35	W10272448		Jumper, Line Filter		Appelez-nous	-
36	W10233256		Cam, Locking Iec				$ 66.19
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 7.64
39	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.04
40	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.66
41	W10189038		Rfi Filter Cpl (export)				$ 87.59
42	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 69.35
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 24.03
NI	W11384794		10a Cord Adaptor (austrailian)   (Replaces: W10476818)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
