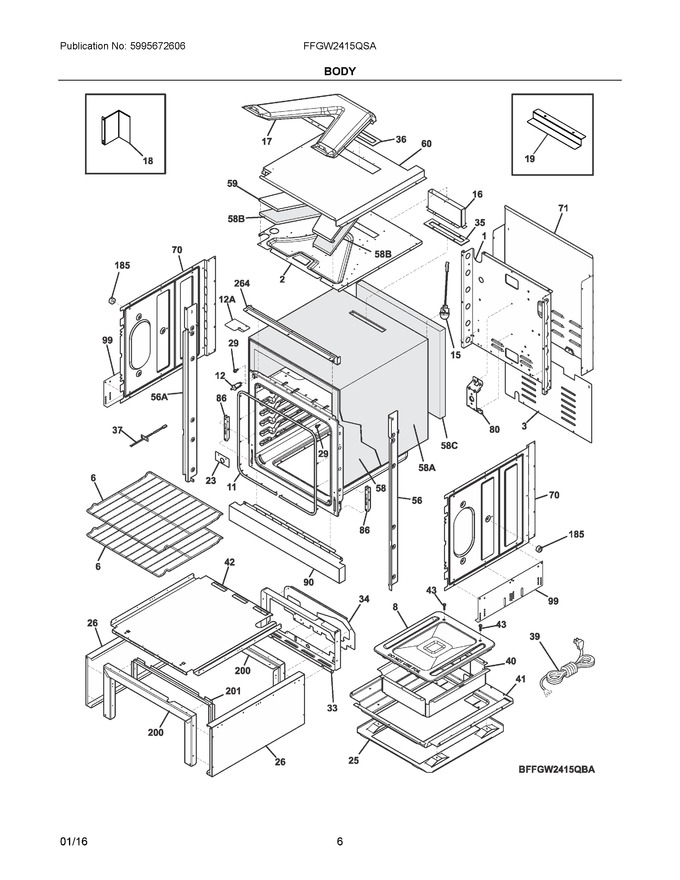

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139029600		Panel, Main Back		Appelez-nous	-
2	139028801		Shield, Insulation, Top		Appelez-nous	-
3	807193201		Panel, Back Cover		Appelez-nous	-
6	139012300		Rack, Oven, (2)		Appelez-nous	-
8	139076701		Cover, Oven Bottom		Appelez-nous	-
11	807108501		Seal, Oven Door		Appelez-nous	-
12	316445501		Switch, Oven Light, Door Frame				$ 90.01
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
16	807246201		Flue Adaptor, Assembly		Appelez-nous	-
17	807245701		Flue Assembly, Y Channel		Appelez-nous	-
18	5304498078		Shield, Power Connector		Appelez-nous	-
19	5304498109		Shield, Vent		Appelez-nous	-
23	139004500		Cover, Broil Opening		Appelez-nous	-
25	808054701		Shield, Heat, Lower		Appelez-nous	-
26	139080700		Panel, Drawer Side, (2)		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 12.05
33	808054101		Frame, Service Panel, Valve		Appelez-nous	-
34	808054601		Panel, Valve Mounting		Appelez-nous	-
35	807180901		Gasket, Flue Adaptor		Appelez-nous	-
36	5304504262		Gasket, Flue Base		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
39	5304534000		Cord, Electric Power   (Replaces: 807108201)			Immediately	$ 33.37
40	5304498071		Box, Burner		Appelez-nous	-
41	807844602		Bracket, Body, Middle		Appelez-nous	-
42	5304504567		Panel, Lower		Appelez-nous	-
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
56	139081902		Trim, Side, Black, Rh		Appelez-nous	-
58	808553101		Insulation, Wrapper, Oven		Appelez-nous	-
59	807780501		Shield, Flue Insulation, Bottom		Appelez-nous	-
60	807780601		Shield, Intermediate, Top		Appelez-nous	-
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139029000		Shield, Rear Wire		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
86	318561100		Receptacle, Hinge, (2)				$ 21.23
90	139905004		Trim, Bottom, Stainless		Appelez-nous	-
99	318284201		Panel, Adjustable, Side, (2)		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
200	5304498076		Frame, Compartment, (2)		Appelez-nous	-
201	5304498099		Bracket, Compartment, Frame		Appelez-nous	-
264	139086101		Trim, Vent, Black, Upper		Appelez-nous	-
12A	5304504232		Shield, Door Switch		Appelez-nous	-
56A	139081802		Trim, Side, Black, Lh		Appelez-nous	-
58A	807780401		Insulation, Wrapper		Appelez-nous	-
58B	807779801		Insulation, Flue, (2)		Appelez-nous	-
58C	139028500		Insulation, Cavity, Rear		Appelez-nous	-
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5304498103		Harness, Wiring, Main		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	318165800		Spacer, Glass, Foam				$ 17.72
NIAA	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
NIB	318579001		Bracket, Wire				$ 11.08
