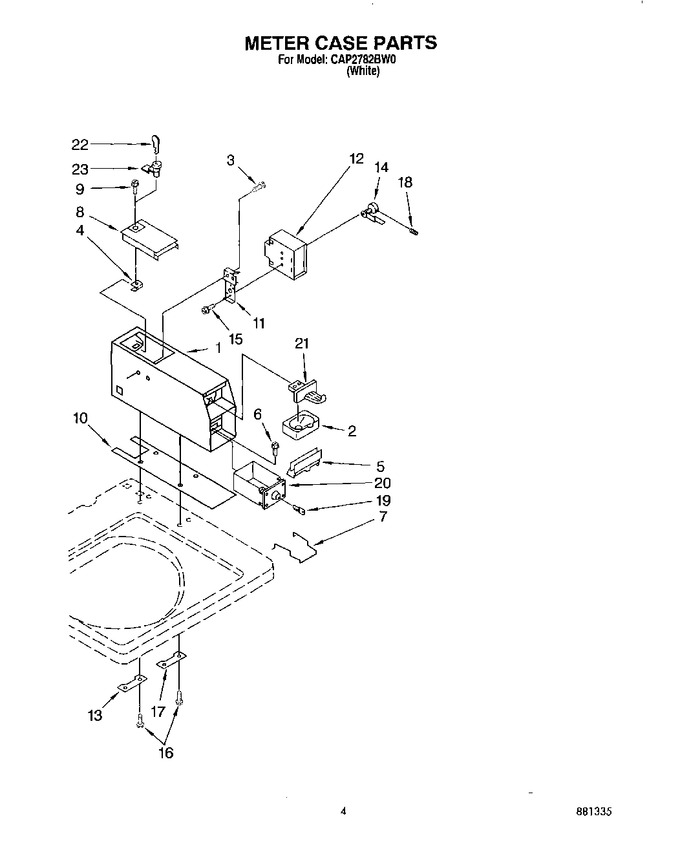

03 - Meter Case


04 - Rear Panel


05 - Agitator, Basket And Tub


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Wiring Harness


09 - Brake And Drive Tube


10 - Gearcase


11 - Water System


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3357357		Meter Case		Appelez-nous	-
2	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
3	339805		Screw, 10-32 X 3/16				$ 12.05
4	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
5	3351150		Spacer (money Vault)		Appelez-nous	-
6	3353994		Bolt (5/16 - 18 X 2 1/2)		Appelez-nous	-
6	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 6.41
7	3352295		Guide, Drawer		Appelez-nous	-
8	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
9	358409		Screw & Washer		Appelez-nous	-
10	WP3954812		Cushion, Case   (Replaces: 3348850)				$ 27.99
11	385575		Bracket, Timer				$ 94.31
12	WP3355023		Timer, 50 Hz.   (Replaces: 3355023)			Immediately	$ 359.89
13	3353813		Plate, Mounting				$ 47.08
14	WP354987		E-ring   (Replaces: 354987)			Immediately	$ 10.58
14	385571		Clutch, Timer				$ 42.89
15	WP356418		Screw, Timer   (Replaces: 96435)				$ 7.13
16	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
17	3347825		Plate, Mounting		Appelez-nous	-
18	98654		Screw, Set		Appelez-nous	-
