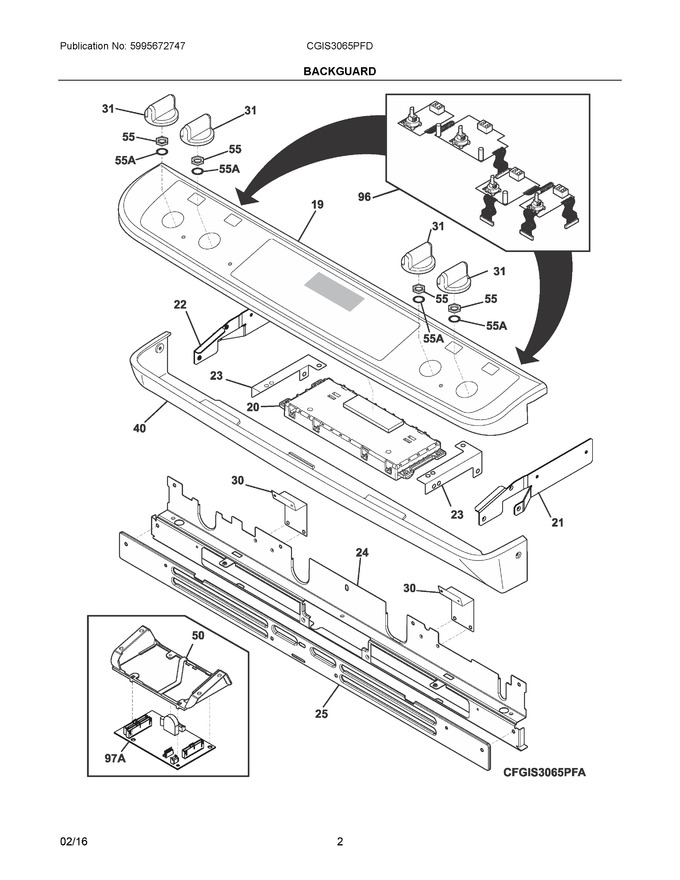

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	139059422		Panel Assembly, Control, Black/stainless   (Replaces: 139059413)				$ 635.20
20	5304503758		Controller, Electronic, Es530w6			Immediately	$ 360.23
21	808735903		Bracket, Support, Rh, Control Panel		Appelez-nous	-
22	808735904		Bracket, Support, Lh, Control Panel		Appelez-nous	-
23	318921300		Bracket, Control Mtg, (2)				$ 17.64
24	139074901		Frame, Vent Trim, Black		Appelez-nous	-
25	139075001		Cover, Vent Trim, Black				$ 60.52
30	318928502		Bracket, Control Panel, Rear, (2)				$ 15.60
31	316564406		Knob, Control, Stainless				$ 155.22
40	318912908		Panel, Service, Black				$ 262.57
50	318917700		Chassis, Uib Mounting				$ 91.46
55	316247700		Nut, Mounting				$ 18.20
96	318411412		Control Assembly, Complete, Rotary, W/4 Controls			Immediately	$ 358.43
55A	316247800		Washer, Lock, Mtg				$ 18.20
97A	316578339		Board, Esec, Uib Touch				$ 246.13
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	809104401		Harness, Wiring, Communication, Esec20 To Power				$ 72.66
NI	5304499967		Harness, Wiring, Uib To, Timer		Appelez-nous	-
NI	5304499968		Harness, Wiring, Display		Appelez-nous	-
NIAA	5304497426		Plate, Barrier, Power Board				$ 12.06

    View Diagram in Separate Window       Print Part List
