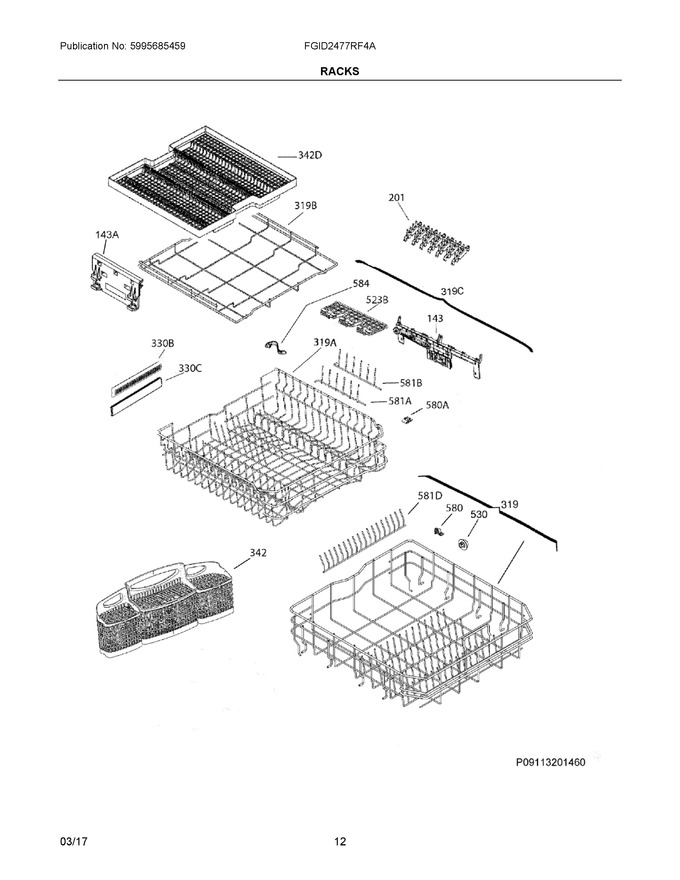

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
143	808092517		Adjustment, Upper Rack, Lh			Immediately	$ 81.98
201	808507801		Soft Grip, Spikes, Rubber		Appelez-nous	-
319	140066296207		Rack Assembly, Lower, Silver   (Replaces: A00241307)				$ 161.87
342	154749604		Basket, Cuttlery, Black, Lower Rack, 3 Pcs				$ 274.84
530	405507213		Rack Roller, Kit, Lower				$ 45.46
580	807282902		Clip, Partition, Lower Rack				$ 65.92
584	A00924504		Clip, Cup				$ 33.42
143A	808092518		Adjustment, Upper Rack, Rh			Immediately	$ 76.97
143A	A00008104		Holder, Basket, Grey, Top   (Replaces: A00008103)			Immediately	$ 29.69
319A	A00239833		Rack Assembly, Upper, Silver				$ 318.50
319B	A00004305		Rack, Top, Silver				$ 363.30
319C	117492580		Rack Assembly, Complete, Silver, Upper, W/adjustments				$ 422.18
330B	807062703		Handle, Upper Rack, Rear				$ 90.72
330C	807075808		Handle, Upper Rack, Front				$ 90.72
342D	A02899201		Basket, Cuttlery, Grey, Shelf				$ 160.77
523B	808124102		Shelf, Cup, Grey				$ 171.00
580A	A00141702		Fixing Clamp, Partition, Upper				$ 74.99
581A	A00237001		Partition, Upper Rack, Lh				$ 160.61
581B	807077101		Partition, Upper Rack, Rh				$ 156.64
581D	A00240901		Partition, Lower Rack				$ 155.93

    View Diagram in Separate Window       Print Part List
