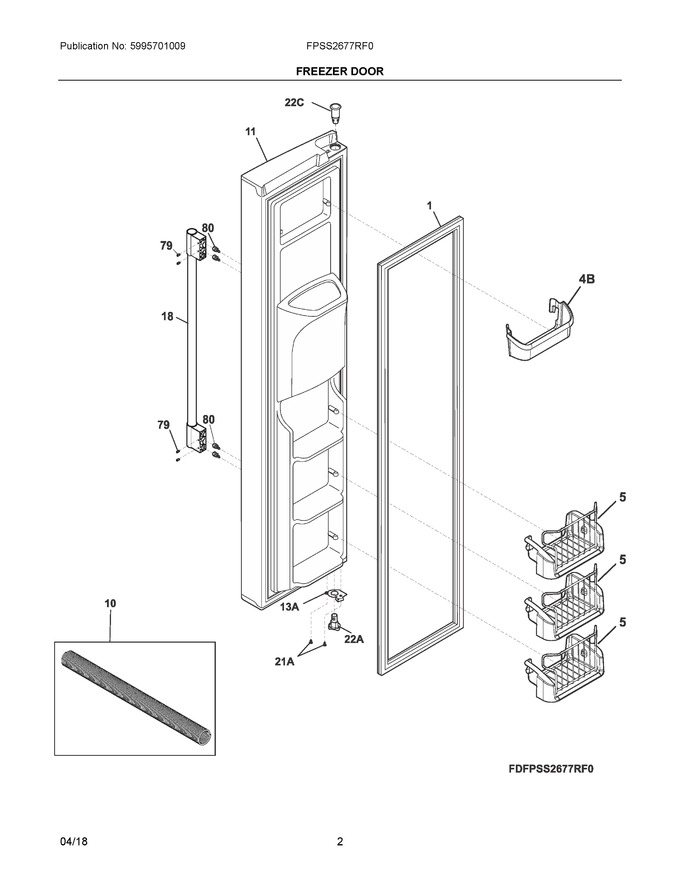

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Gasket-frzr Door, Grey, Magnetic (Replaces: 241786010) |
|
$ 95.17 | |||||
| 5 | 241545005 | Bin-tilt Out, Tilt-out |
|
$ 130.64 | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 807460023 | Freezer Door, Complete, Stainless |
|
- | |||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 111.76 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990204 | Door Stop, Black, Frz |
|
- | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 4B | 240334202 | Bin-door, Frzr-upper |
|
Immediately | $ 67.21 | ||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 218976438 | Natural, 62? Long, Bottom Of Door To Dispenser |
|
Immediately | $ 20.56 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door |
|
$ 19.13 |
