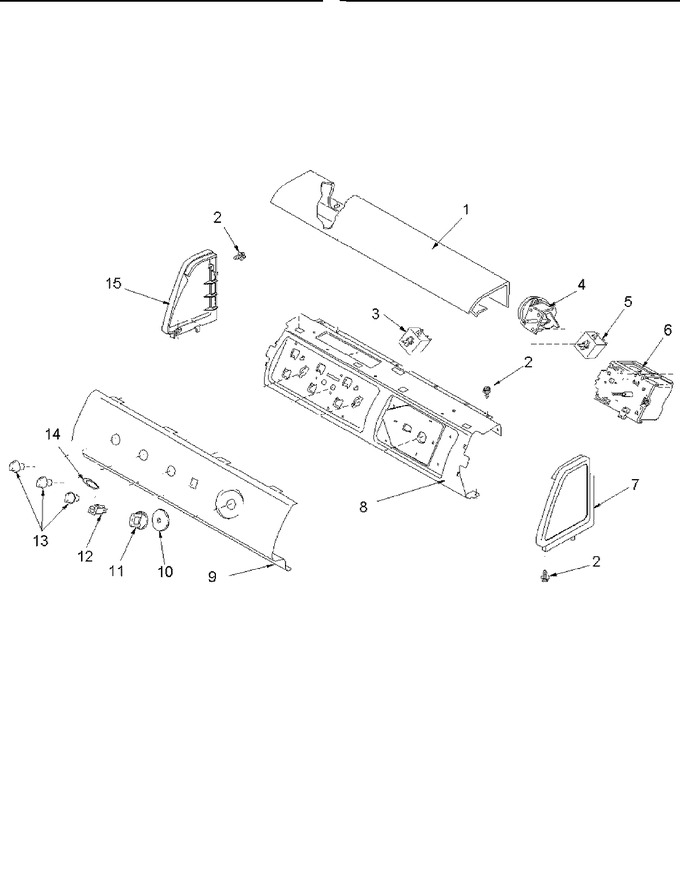

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D505808W		Cover, Top (wht)   (Replaces: 503674W)	10			$ 91.43
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
3	40074101		Switch,temp Sel-4 Pos	10	Appelez-nous	-
4	40055101		Switch, Pressure	10			$ 76.16
5	40039501		Switch, Speed	10	Appelez-nous	-
6	40059102		Timer	10	Appelez-nous	-
7	40012701W		Endcap (rt-wht)	10	Appelez-nous	-
7	40012702W		Endcap (lt-wht)	10	Appelez-nous	-
8	40039601		Support, Control Panel	10	Appelez-nous	-
9	40072802W		Panel,graphic(white)	10	Appelez-nous	-
10	40013701W		Dial, Timer Knob (wht)	10	Appelez-nous	-
11	40014001W		Assy, Timer Knob (wht)	10	Appelez-nous	-
12	38424W		Switch, Rocker (wht)	10			$ 8.73
13	40013401W		Assy, Selector Knob (wht)	10	Appelez-nous	-
14	40083301		Medallion	10	Appelez-nous	-
15	40098701		Cord, Power	10	Appelez-nous	-
