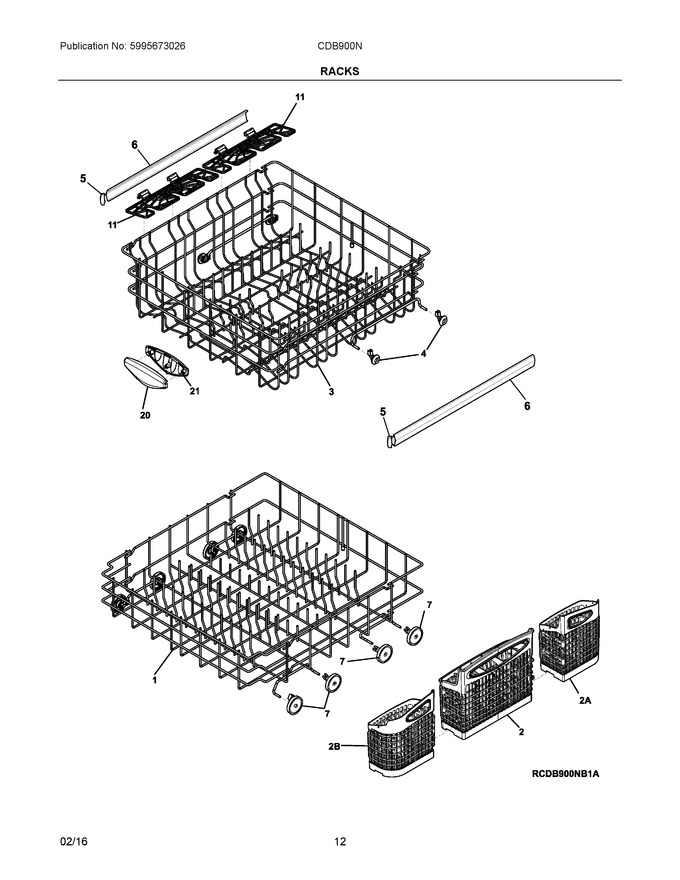

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533200 | Rack Assembly, Lower, Nylon, Grey, W/wheels (Replaces: 154875203) |
|
$ 151.81 | |||||
| 2 | 5304535382 | Basket, Silverware, Grey, Main (Replaces: 154424002) |
|
Immediately | $ 25.43 | ||||
| 3 | 140229954072 | Rack Assembly, Upper (Replaces: 5304498212) |
|
Immediately | $ 145.13 | ||||
| 4 | 154522902 | Wheel & Bushing Assy, Grey, Upper Rack, (8) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap, Slide, Grey, (4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy, Grey, Lower Rack, (8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Shelf, Cup, Half Width, Gray (Replaces: 154793904) |
|
$ 7.42 | |||||
| 20 | 5304488229 | Handle, Rack, Gray, Front |
|
- | |||||
| 21 | 5304504913 | Handle, Pull, Grey, Rear, Upper Rack (Replaces: 154530902) |
|
$ 13.74 | |||||
| 2A | 5304535382 | Basket, Silverware, Grey, Back (Replaces: 154747801) |
|
Immediately | $ 25.43 | ||||
| 2B | 5304535382 | Basket, Silverware, Grey, Front (Replaces: 154747901) |
|
Immediately | $ 25.43 |
