Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154872204 Console, Control, White Special Order $ 95.97

2 807327601 Insert, Control Panel, White Special Order $ 188.37

3 5304504655 Board, Control Special Order $ 289.90

4 154718801 Cover, Control Special Order $ 35.44

9 154783101 Screw, Plt, 8-10 In-Stock Immediately $ 7.09

10 154294701 Screw, #7 Plas .375, (6), Disp. Assy. Special Order $ 9.22

33 154478901 Gasket, Cover Special Order $ 61.66

NI 5304500408 Harness, Wiring, Main Special Order $ 140.24

NI 808612206 Energy Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

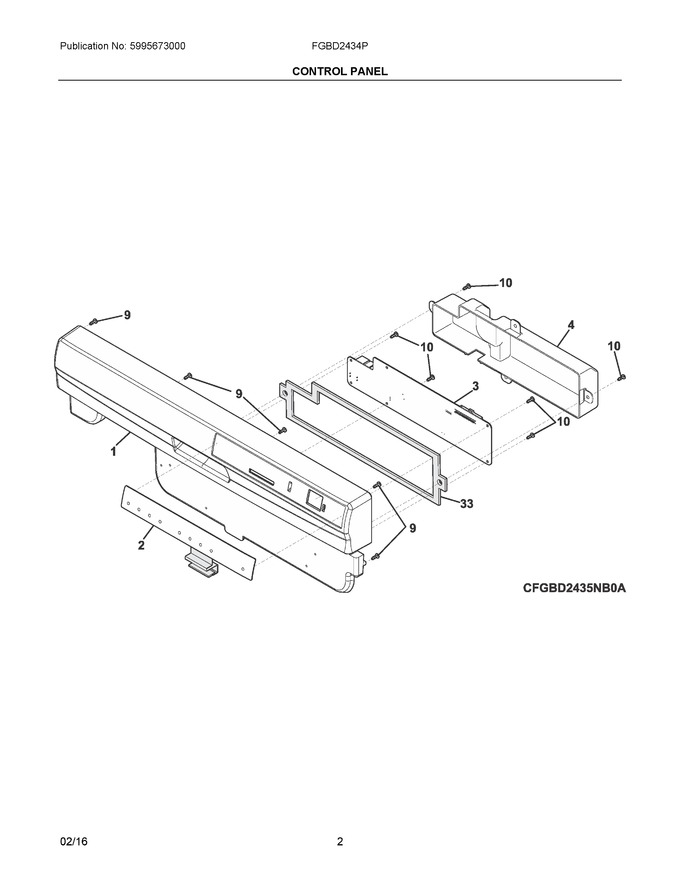

Diagram for FGBD2434PW6B
