02 - Main Top

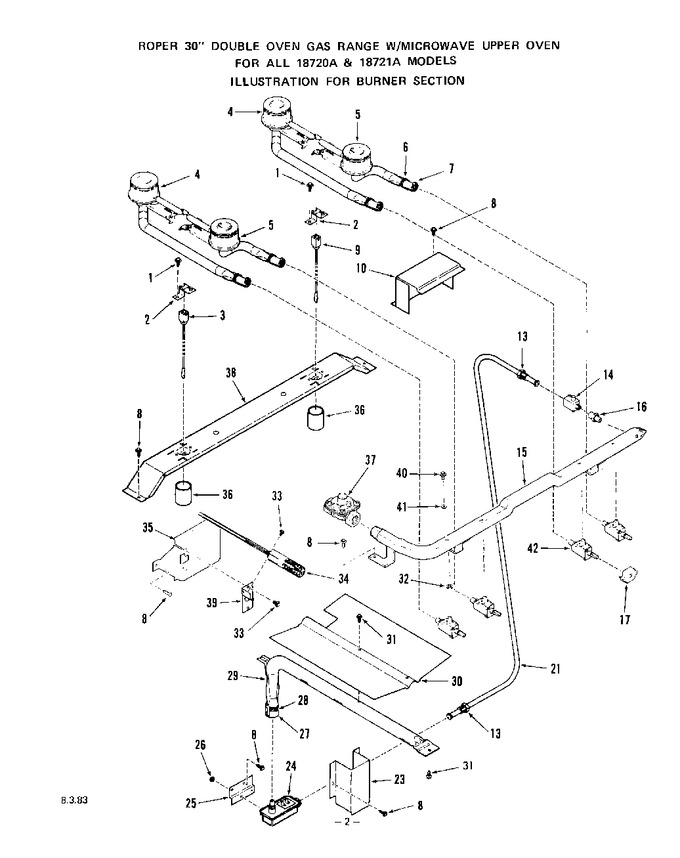

03 - Burner
04 - Lower Body
05 - Oven Door
06 - Upper Oven Pedestal
07 - Lower Oven Control, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 2 | 312453 | Bracket-top Igniter (lt. Or Rt.) |
|
- | |||||
| 3 | 312455 | Electrode-top Igniter (lt.) |
|
- | |||||
| 4 | 310197 | Top Burner - Rear (inc`s Keys 6 &7) |
|
- | |||||
| 5 | 310196 | Top Burner - Front (inc`s Keys 6 & 7) |
|
- | |||||
| 6 | 301911 | Screw |
|
- | |||||
| 7 | 301910 | Air Shutter |
|
- | |||||
| 8 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 9 | 312598 | Electrode-top Igniter (rt.) |
|
- | |||||
| 10 | 308315 | Wire Cover-thermostat |
|
- | |||||
| 13 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 14 | 292894 | Shut Off Valve |
|
- | |||||
| 15 | 323805 | Manifold Pipe |
|
- | |||||
| 16 | 312833 | Fitting |
|
- | |||||
| 17 | 312457 | Switch - Gas Valve (4 Required) |
|
- | |||||
| 21 | 315807 | Tubing 3/8`` (shut-off To Control Valve) |
|
- | |||||
| 23 | 307002 | Cover - Ignitor Wires |
|
- | |||||
| 24 | 321756 | Control Valve |
|
- | |||||
| 25 | 296179 | Bracket-control Valve |
|
- | |||||
| 26 | 236313 | Nut 6-32 |
|
- | |||||
| 27 | 312988 | Air Shutter |
|
- | |||||
| 28 | 312989 | Screw |
|
- | |||||
| 29 | 324864 | Oven Burner (inc. Keys 27, 28 & 30) |
|
- | |||||
| 30 | 308321 | Baffle - Oven Burner |
|
- | |||||
| 31 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 32 | 313563 | Gasket (4 Req. For Key 42) |
|
- | |||||
| 33 | 105771 | Screw 10 - 32 X 1/4`` |
|
- | |||||
| 34 | WG02F04373 | Igniter-oven Burner (Replaces: 319887) |
|
Immediately | $ 109.23 | ||||
| 35 | 316076 | Bracket - Ignitor Mounting |
|
- | |||||
| 36 | 314132 | Sleeve-igniter Wires |
|
- | |||||
| 37 | 324528 | Pressure Regulator |
|
- | |||||
| 38 | 313375 | Support-top Burner |
|
- | |||||
| 39 | 311689 | Bracket - Ignitor |
|
- | |||||
| 40 | 311455 | Screw - 1/4-20 (1 Ea For Keys 14 & 42) |
|
- | |||||
| 41 | 304241 | Rubber Gasket (4 Req) |
|
- | |||||
| 42 | 324482 | Gas Valve (4 Req, Inc`s 32) |
|
- |
