01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

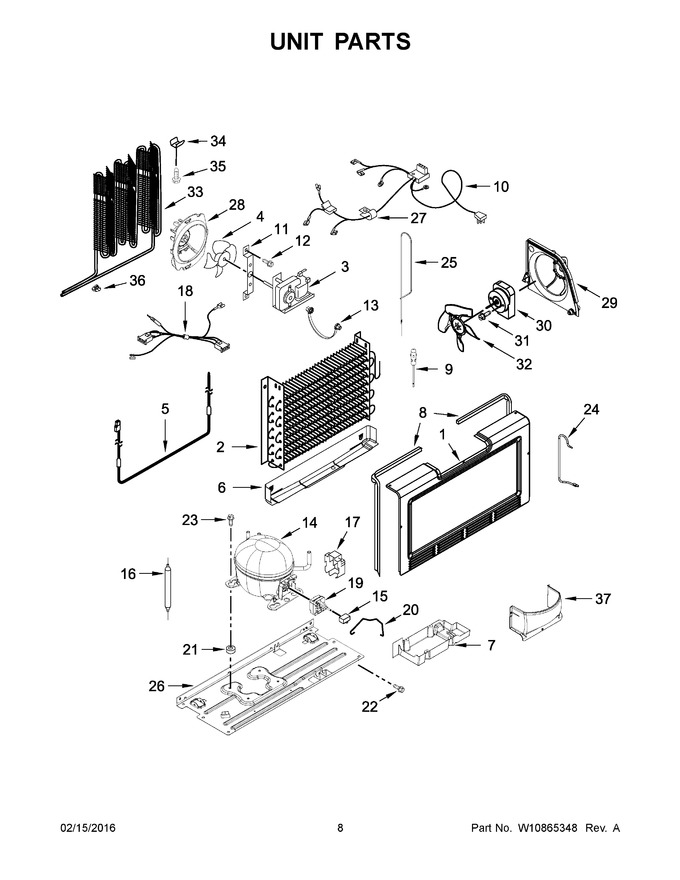

| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 106.82 | |||||
| 2 | W11507067 | Evaporator (Replaces: W10574283) |
|
Immediately | $ 179.91 | ||||
| 3 | WPW10359880 | Fan Motor (Replaces: W10359880) |
|
Immediately | $ 61.53 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 5 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 221.07 | ||||
| 6 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 86.86 | |||||
| 7 | W10574291 | Drain Pan, Evaporator |
|
$ 102.36 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 7.50 | |||||
| 9 | WPW10383615 | Thermistor, Freezer Evaporator (Replaces: W10383615) |
|
Immediately | $ 42.76 | ||||
| 10 | W10572629 | Wire Harness (includes Power Cord) |
|
$ 113.31 | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | W11233072 | Screw (Replaces: 3-80732-014) |
|
Immediately | $ 12.62 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 7.12 | |||||
| 14 | W10769822 | Compressor (Replaces: W10591673) |
|
Immediately | $ 601.51 | ||||
| 15 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 89.54 | ||||
| 16 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 17 | W10574450 | Shield, Capacitor |
|
$ 29.33 | |||||
| 18 | W11244436 | Harness, Evaporator Fan (Replaces: W10693200) |
|
$ 120.76 | |||||
| 19 | W10873803 | Start Device (Replaces: W10827242) |
|
$ 150.85 | |||||
| 20 | W10574470 | Bale Strap |
|
$ 16.78 | |||||
| 21 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 13.04 | |||||
| 22 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.39 | |||||
| 23 | W11661574 | Screw (Replaces: 489473) |
|
$ 12.25 | |||||
| 24 | W10574571 | Suction Tube |
|
$ 93.87 | |||||
| 25 | W10574281 | Exchanger, Heat |
|
- | |||||
| 26 | W10574278 | Pan, Compressor |
|
$ 120.66 | |||||
| 27 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 32.45 | |||||
| 29 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 75.42 | ||||
| 30 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 64.28 | ||||
| 31 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 32 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 85.56 | |||||
| 33 | W11507065 | Condenser (Replaces: W10574289) |
|
Immediately | $ 247.99 | ||||
| 34 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 16.61 | |||||
| 35 | W11544659 | Screw (Replaces: W10142294) |
|
$ 12.30 | |||||
| 36 | W10815861 | Clip, Bottom Cover |
|
$ 13.55 | |||||
| 37 | W10574274 | Cover, Evaporator Fan |
|
$ 96.01 | |||||
| NI | N/P | Refrigerant Charge 4.75 Oz. (r-134a) |
|
- |
