SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top


03 - Burner


04 - Wiring Diagram

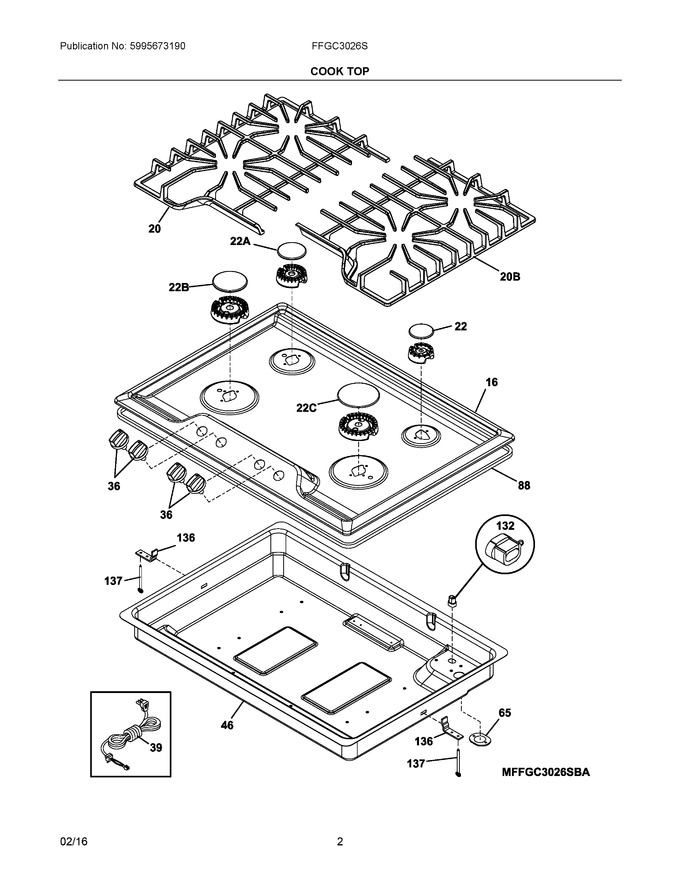

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304504847		Main Top, Assembly, Black		Appelez-nous	-
20	5304504850		Grate, Burner, Black, Lh		Appelez-nous	-
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
36	5304504838		Knob, Burner, Black		Appelez-nous	-
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	5304498809		Burner Box		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
88	5304498810		Gasket, Main Top				$ 91.43
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20B	5304504851		Grate, Burner, Black, Rh		Appelez-nous	-
22A	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
NI	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
NI	305338601		Screw, (2)				$ 4.26
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305424100		Tape, Aluminum		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
