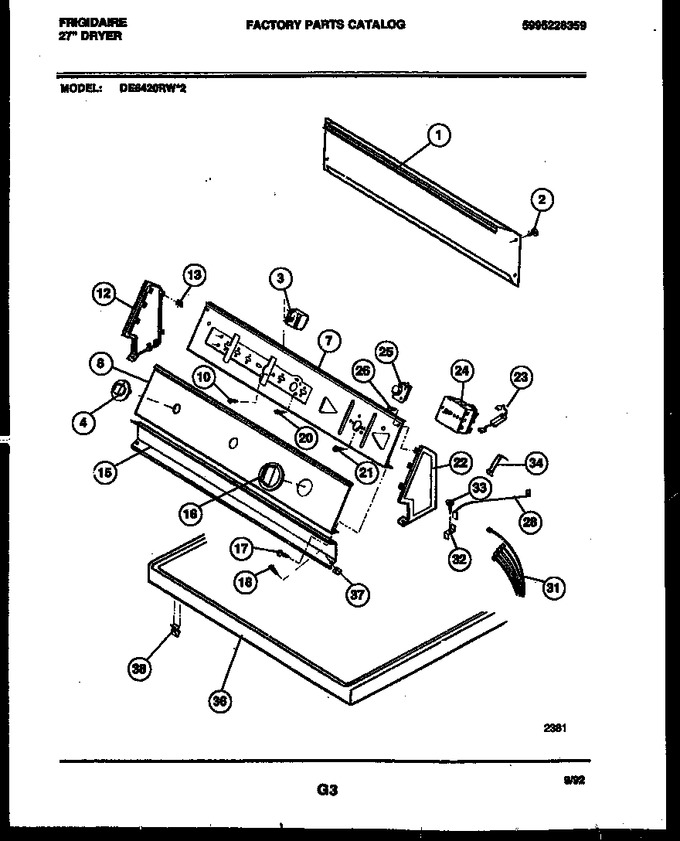

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303284440 | Backsheet |
|
- | |||||
| 2 | 5303015671 | Screw (4) |
|
- | |||||
| 3 | 3201468 | Switch-rotary |
|
- | |||||
| 4 | 5303270990 | Knob-rotary |
|
- | |||||
| 7 | 131013200 | Bracket-controls |
|
- | |||||
| 8 | 131021600 | Panel-control |
|
- | |||||
| 10 | 3161259 | Screw |
|
$ 6.83 | |||||
| 12 | 5303270198 | End Cap-lh |
|
- | |||||
| 13 | 5308014350 | Clip-end Cap (8) |
|
- | |||||
| 15 | 131021500 | Panel-bottom |
|
- | |||||
| 16 | 5303286644 | Knob-timer |
|
- | |||||
| 17 | 5303279341 | Screw (3) |
|
- | |||||
| 18 | 5303279343 | Screw |
|
- | |||||
| 20 | 08001544 | Screw |
|
- | |||||
| 21 | 218359202 | Screw (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 22 | 5303270200 | End Cap-rh |
|
- | |||||
| 23 | 5303281110 | Resistor |
|
- | |||||
| 24 | 131719100 | Timer (Replaces: 5303291433) |
|
Immediately | $ 269.37 | ||||
| 25 | 5303210198 | Switch-start |
|
- | |||||
| 26 | 08010789 | Screw |
|
- | |||||
| 28 | 3201385 | Ground Wire |
|
- | |||||
| 31 | 131032600 | Harness |
|
- | |||||
| 32 | 5379171000 | Terminal |
|
- | |||||
| 33 | 08001689 | Screw |
|
- | |||||
| 34 | 08014349 | Ground Strap |
|
- | |||||
| 36 | 5303273261 | Panel-top |
|
- | |||||
| 37 | 5300503065 | Clip |
|
$ 6.09 | |||||
| 38 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| *67017 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| *67017 | 5303015671 | Screw-buzzer |
|
- | |||||
| 31A | 5303281103 | Wire Tie-harness (non-illustrated) |
|
- |
