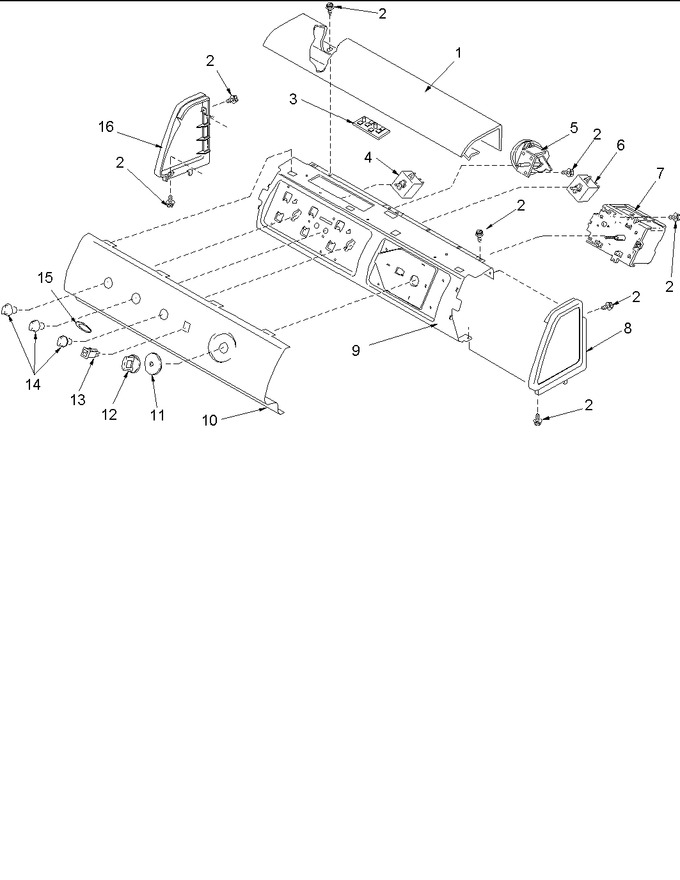

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | D505808W | Cover, Top (wht) (Replaces: 503674W) |
|
$ 91.43 | |||||
| 3 | 40014401 | Board,atc Control |
|
- | |||||
| 4 | 40107102 | Switch,temp Sel-6 Pos |
|
- | |||||
| 5 | 40055101 | Switch, Pressure |
|
$ 76.16 | |||||
| 6 | 40108501 | Switch,speed-4 Pos |
|
- | |||||
| 7 | 40107302 | Timer,115v/60hz/13 Cycle |
|
- | |||||
| 8 | 40012701W | Endcap (rt-wht) |
|
- | |||||
| 9 | 40039609 | Panel,support Control |
|
- | |||||
| 10 | 40107603W | Panel,graphic(white) |
|
- | |||||
| 11 | 40013701W | Dial, Timer Knob (wht) |
|
- | |||||
| 12 | 40014001W | Assy, Timer Knob (wht) |
|
- | |||||
| 14 | 40013401W | Assy, Selector Knob (wht) |
|
- | |||||
| 15 | 40083301 | Medallion |
|
- | |||||
| 16 | 40012702W | Endcap (lt-wht) |
|
- | |||||
| NI | 40107901 | Assy,wire Harn Hood |
|
- | |||||
| NI | 40100001 | Harness, Base Wire |
|
- |
