SELECT A DIAGRAM
01 - Cover Sheet

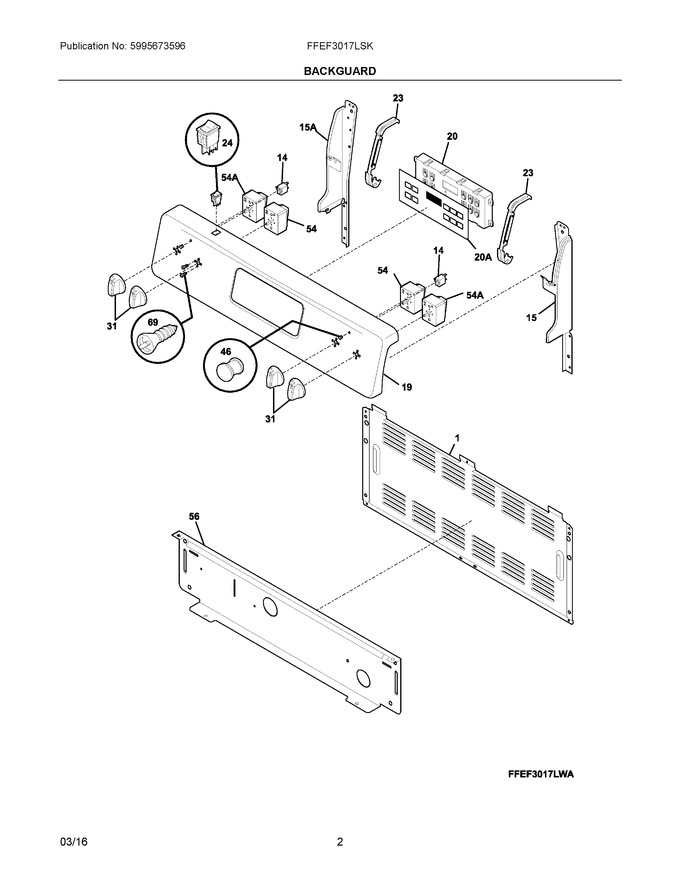

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield, Backguard, Rear Wall (Replaces: 316281800) |
|
$ 57.64 | |||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316411405 | Support, Backguard, Black, Rh |
|
$ 83.95 | |||||
| 19 | 316456536 | Panel, Backguard, Stainless |
|
$ 234.26 | |||||
| 20 | 5304509493 | Clock/timer, Electronic, Es300 (Replaces: 316557115) |
|
Immediately | $ 212.37 | ||||
| 23 | 316441600 | Bracket-clock Mtg, Black |
|
$ 20.48 | |||||
| 24 | 5304527841 | Switch, Rocker, Black, Oven Light (Replaces: 316448700) |
|
Immediately | $ 11.38 | ||||
| 31 | 316543801 | Knob, Control, Black |
|
Immediately | $ 55.38 | ||||
| 46 | 316437900 | Lens, Indicator Light |
|
$ 11.45 | |||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 80.34 | ||||
| 56 | 316234045 | Shield, Backguard, Black, Inner (Replaces: 316234013) |
|
$ 66.74 | |||||
| 15A | 316411404 | Support, Backguard, Black, Lh |
|
$ 83.95 | |||||
| 20A | 316419141 | Overlay, Clock, Black, Es300 |
|
Immediately | $ 56.87 | ||||
| 54A | 316436001 | Switch, Infinite, Large Element |
|
Immediately | $ 51.68 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
