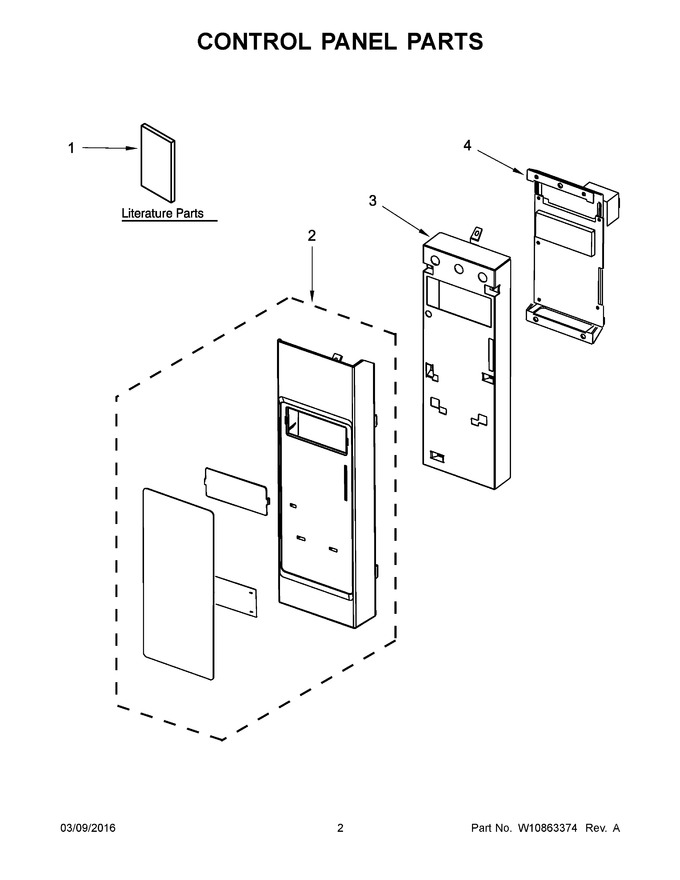

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10852586		Installation Instructions		Appelez-nous	-
2	W10709220		Control Panel Assembly (includes Lens And Membrane Switch) (white)				$ 166.74
3	W10346134		Bracket, Control				$ 82.59
4	W10883279		Microcomputer   (Replaces: W10676696)				$ 222.08
1A	W10691580		Use And Care Guide		Appelez-nous	-
1B	8206005		Cook Guide Label		Appelez-nous	-
1C	W10487520		Tech Sheet		Appelez-nous	-
