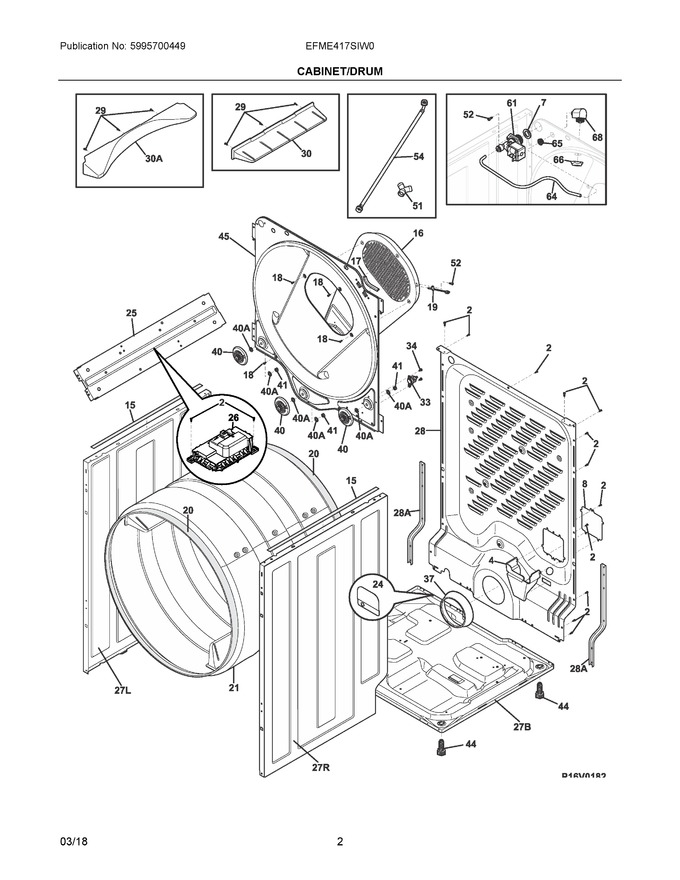

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792100		Bracket, Main, Terminal				$ 29.07
7	5303161296		Washer, Inlet Hose			Immediately	$ 2,372.96
8	137578600		Cover, Access, Terminal Block				$ 12.65
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	5304508449		Duct, Heat, Rear   (Replaces: 134694030)			Immediately	$ 108.44
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	134711200		Thermistor, Inlet			Immediately	$ 51.03
20	5304499489		Seal, Felt, Purple Stitches, Drum			Immediately	$ 56.69
21	137610700		Drum, Dryer Assy, 38", White			Immediately	$ 383.44
24	137537100		Cover, Back Sheet, Cutout		Appelez-nous	-
25	137567000		Bracket, Mounting, Main Cntl Box		Appelez-nous	-
26	5304505537		Main Board, Assembly (elec), Dryer, W/housing		Appelez-nous	-
28	137560425		Panel, Backsheet   (Replaces: 137560413)			Immediately	$ 235.53
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137610610		Vane, Straight, Gray			Immediately	$ 65.21
33	137515200		Limiter, Flush Mount, Thermal				$ 60.25
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
37	137553500		Cover, Exhaust Tube				$ 47.66
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
44	134158001		Leveling Leg, Screw			Immediately	$ 25.02
45	137556628		Bulkhead, Panel, Rear				$ 180.97
51	5304500709		Fitting, "y", Hose Adapter   (Replaces: 137016711)			Immediately	$ 12.56
52	137573900		Screw, Comb Pan Hd, 1/4-14x.375		Appelez-nous	-
54	5304503984		Hose, Subassembly, 48", Inlet   (Replaces: 137471700)				$ 46.07
61	137544800		Valve, Mist Lowprofile			Immediately	$ 78.44
64	5304529773		Tube, Water Valve To, Misting Nozzle   (Replaces: 137402400)				$ 77.30
65	137017200		Grommet, Misting Tube				$ 3.55
66	5304529773		Nut, Nozzle   (Replaces: 137017300)				$ 77.30
68	5304529773		Adapter, Water Nozzle, Complete   (Replaces: 137030100)				$ 77.30
27B	134690203		Base, Dryer				$ 273.58
27L	134712696		Panel, Left Side, White			Immediately	$ 230.42
27R	134712796		Panel, Right Side, White			Immediately	$ 230.42
28A	137029800		Bracket, Reinforcement, Backsheet		Appelez-nous	-
30A	5304531882		Vane, Mixing, Smooth   (Replaces: 137610510)				$ 20.24
40A	134716700		Washer, Flat				$ 2.12
NI	137240500		Brace, Side Panel		Appelez-nous	-
NIA	5304506746		Shield, Mist Valve, Low Profile   (Replaces: 137603500)				$ 43.38
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
NIA	5304505232		Harness, Wiring, Main				$ 228.88
NIA	131205500		Screw, 1/4-14 X 0.625				$ 13.46
NIA	137360810		Protector, Edge, Side Brace		Appelez-nous	-
NIA	5304500486		Seal, Felt, Red Stitches, Drum				$ 46.78
NIB	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIB	134926600		Damper, Sound				$ 14.18
NIB	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
NIB	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 13.46
