View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Front Panel/lint Filter

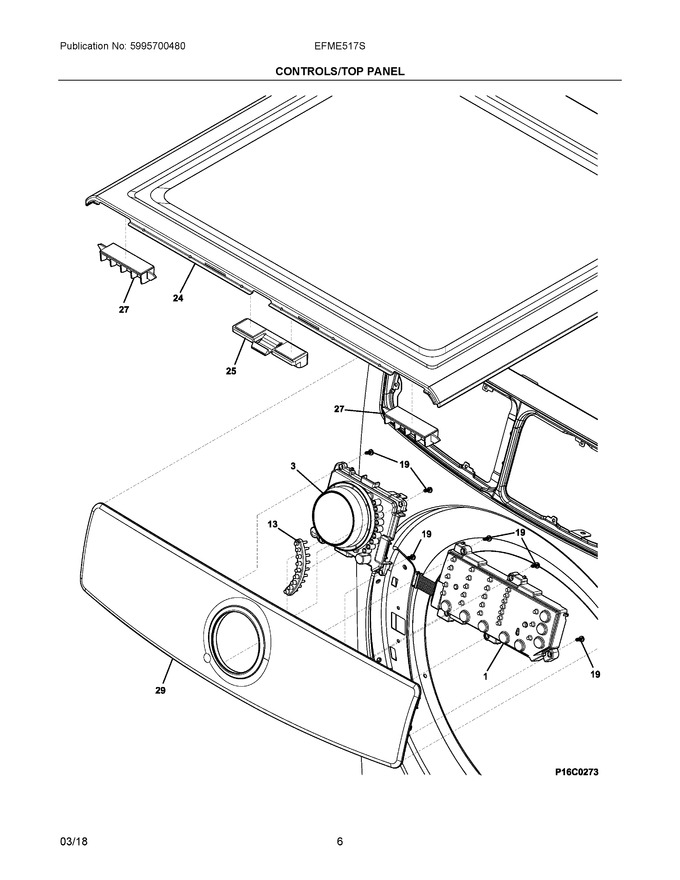

04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505611 | Board Assembly, Ui Programmed, Satellite, W/housing-screws |
|
$ 241.69 | |||||
| 3 | 5304508432 | Knob Assembly, Complete, W/boards (Replaces: 5304505018) |
|
Immediately | $ 266.04 | ||||
| 13 | 5304505064 | Diffuser, Light |
|
$ 15.23 | |||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 6.51 | |||||
| 24 | 5304505081 | Top Panel, White |
|
$ 227.48 | |||||
| 25 | 5304505357 | Clip, Top, W/tape |
|
$ 65.30 | |||||
| 27 | 5304505423 | Block, Top, (2), W/tape |
|
$ 19.85 | |||||
| 29 | 5304505535 | Console Assembly, W/overlay |
|
$ 228.08 | |||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| NI | 5304505232 | Harness, Wiring, Main |
|
$ 228.88 | |||||
| NI | 134926600 | Damper, Sound |
|
$ 14.18 |
