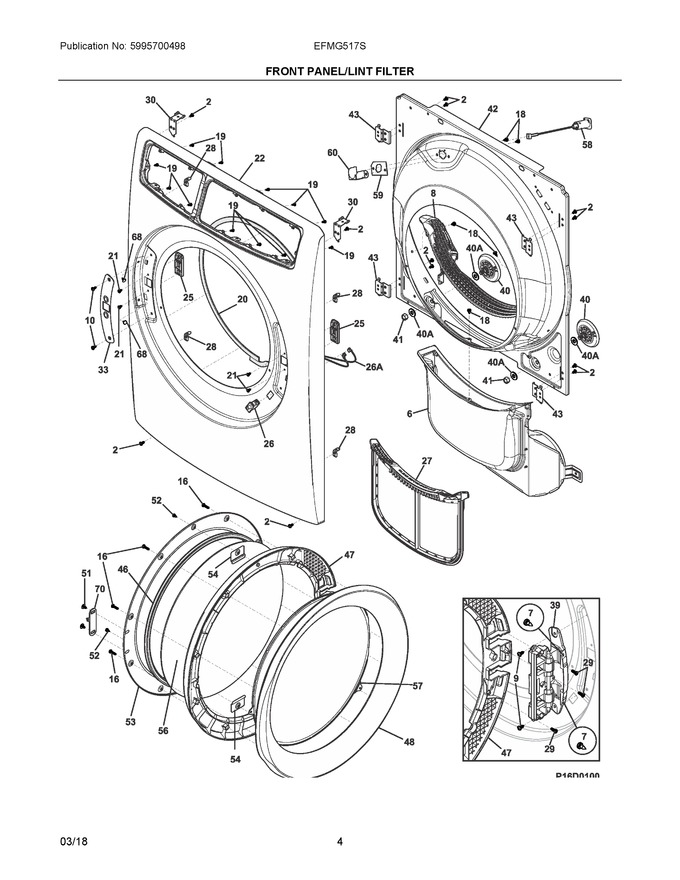

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
6	5304505353		Duct Assembly, Air, W/foam Top Seal				$ 156.15
7	137285100		Screw, Pan Head, #8-18x.750				$ 17.53
8	5304505136		Grill Assembly, Lint, W/moisture Sens				$ 111.33
9	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 16.43
10	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
20	5304505111		Gasket, Foam, Front Panel				$ 81.91
21	137285000		Screw, Pan Head, #8-16x.3125, Qudrex		Appelez-nous	-
22	5304505096		Panel, Dryer Front, Titanium				$ 246.96
25	5304505317		Latch, Door, (2)				$ 60.72
26	134813600		Switch, Door			Immediately	$ 43.09
27	5304511512		Filter, Lint Screen   (Replaces: 5304505076)			Immediately	$ 78.53
28	137034500		Clip, Mounting, Cabinet Front				$ 43.24
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	5304505085		Bracket, Top, (2)				$ 11.76
33	5304505011		Cover, Front Panel				$ 15.54
39	5304505133		Hinge Assembly, Nest				$ 181.69
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
42	5304505122		Bulkhead, Front				$ 228.20
43	5304505118		Bracket, Bulkhead, (4)				$ 14.46
46	5304505010		Gasket, Door Seal, Inner			Immediately	$ 98.46
47	5304505115		Frame, Inner Door				$ 172.78
48	5304505388		Frame, Outer, Chromed, Door				$ 276.42
51	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 10.63
52	131243700		Screw, Ph, 8-18ab X 0.375   (Replaces: 134529600)				$ 3.36
53	5304504995		Inner Door, Ring, Metal				$ 203.15
54	5304505012		Clamp, Door Glass, (2)			Immediately	$ 18.79
56	5304504999		Glass, Dryer Door, Black			Immediately	$ 167.09
57	5304505119		Shield, Heat, Door			Immediately	$ 117.85
58	5304521399		Lamp Assembly, Drum, W/harness   (Replaces: 5304505252)				$ 98.08
59	5304505406		Gakset, Lamp				$ 73.00
60	137611700		Bracket, Support, Drum Lamp				$ 13.01
68	134742000		Plug, Hinge Hole, White				$ 10.85
70	5304536127		Striker, Latch, Black   (Replaces: 5304505013)			Immediately	$ 18.50
26A	5304505258		Harness, Wiring, Door Lock				$ 44.39
40A	134716700		Washer, Flat				$ 2.12
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	5304505251		Harness, Wiring, Moisture Sensor				$ 39.64
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
