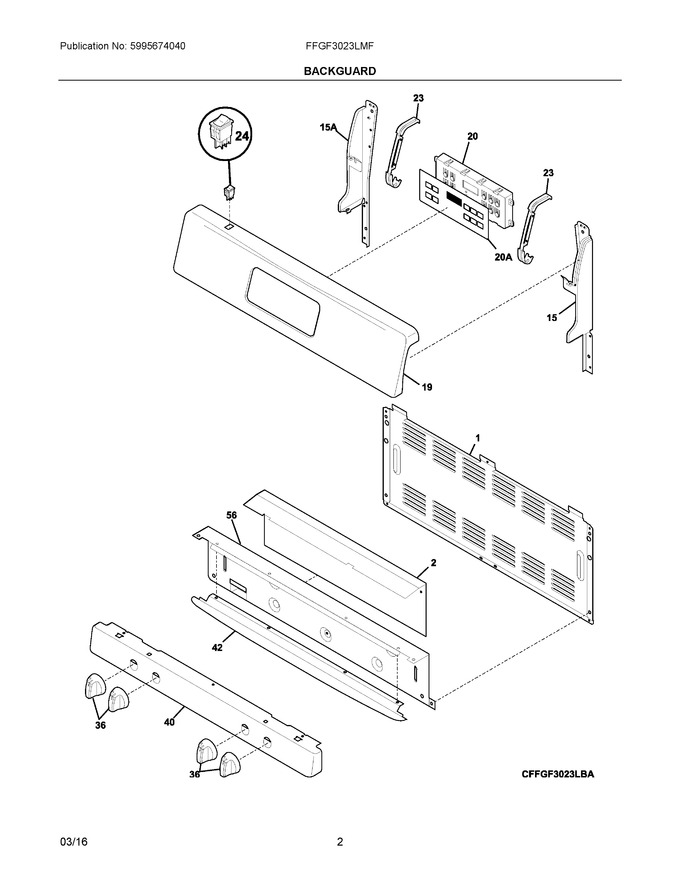

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
2	316497600		Shield, Backguard, Inner				$ 66.31
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316541650		Panel, Backguard, Silver Mist				$ 126.84
20	5304509983		Clock/timer, Electronic, Es300   (Replaces: 316557101)			Immediately	$ 186.73
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 316448700)			Immediately	$ 11.38
36	316543907		Knob, Top Valve, Black, (3)				$ 56.70
40	316290411		Panel-manifold, Black				$ 57.91
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419141		Overlay, Clock, Black, Es300			Immediately	$ 56.87
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
