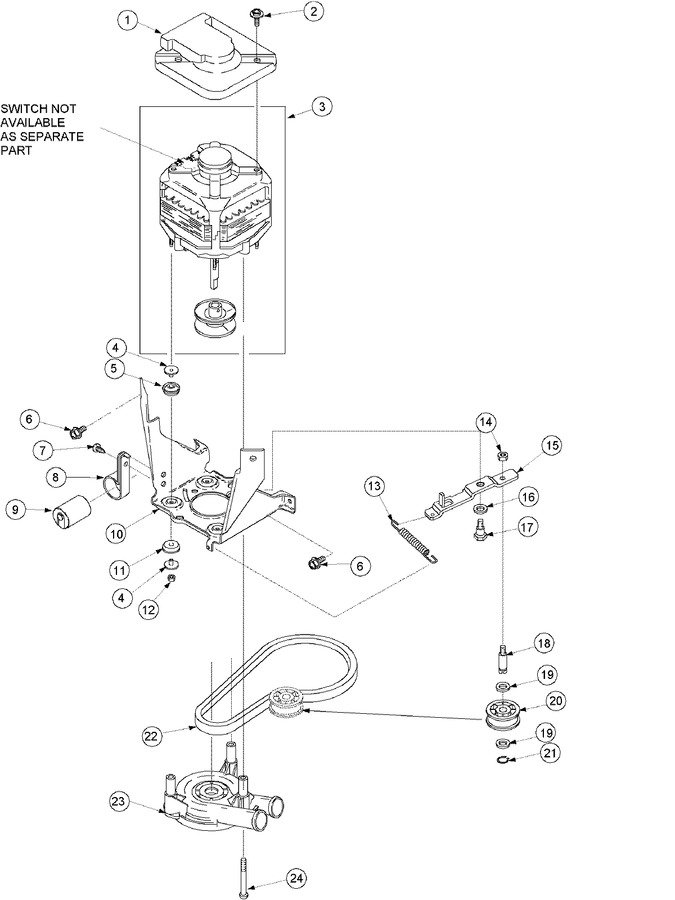

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40112301		Shield, Motor				$ 33.08
2	WP4312464		Screw, No.10x7/16 Id Hx   (Replaces: 40046701)				$ 6.26
3	40096303		Motor, 3 Spd		Appelez-nous	-
4	40053701		Post, Isolator		Appelez-nous	-
5	40053801		Mount, Motor Upper		Appelez-nous	-
6	35369		Screw,5/16-18 X .50   (Replaces: 40128701)			Immediately	$ 6.95
7	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
8	357030		Clamp, Capacitor   (Replaces: 40047001)				$ 18.98
9	40084501		Capacitor				$ 55.24
10	40015502		Bracket,motor Mount		Appelez-nous	-
11	204449CP		Mount, Motor Lower   (Replaces: 40054301)		Appelez-nous	-
12	WPY707702		Locknut, 10-32   (Replaces: 40095101)			Immediately	$ 6.26
13	40061401		Spring, Idler Lever				$ 5.70
14	40038801		Jamnut, 3/8-16		Appelez-nous	-
15	40041002		Lever,idler		Appelez-nous	-
16	40054701		Washer		Appelez-nous	-
17	40038901		Screw, 1/4-20				$ 40.68
18	WP56461		Shaft   (Replaces: 56461)				$ 85.03
19	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
20	205552P		Idler Pulley Assembly   (Replaces: 40045001)			Immediately	$ 19.34
21	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
22	WP27001006		Belt,spin & Agitate   (Replaces: 40053606)			Immediately	$ 46.19
23	40040301		Assembly, Pump Complete		Appelez-nous	-
24	40063701		Screw, 10-16x1.75				$ 5.38
NI	40069501		Motor Mount Lower Assembly		Appelez-nous	-
NI	40069401		Motor Mount Upper Assembly		Appelez-nous	-
