01 - Cover Sheet
02 - Cook Top

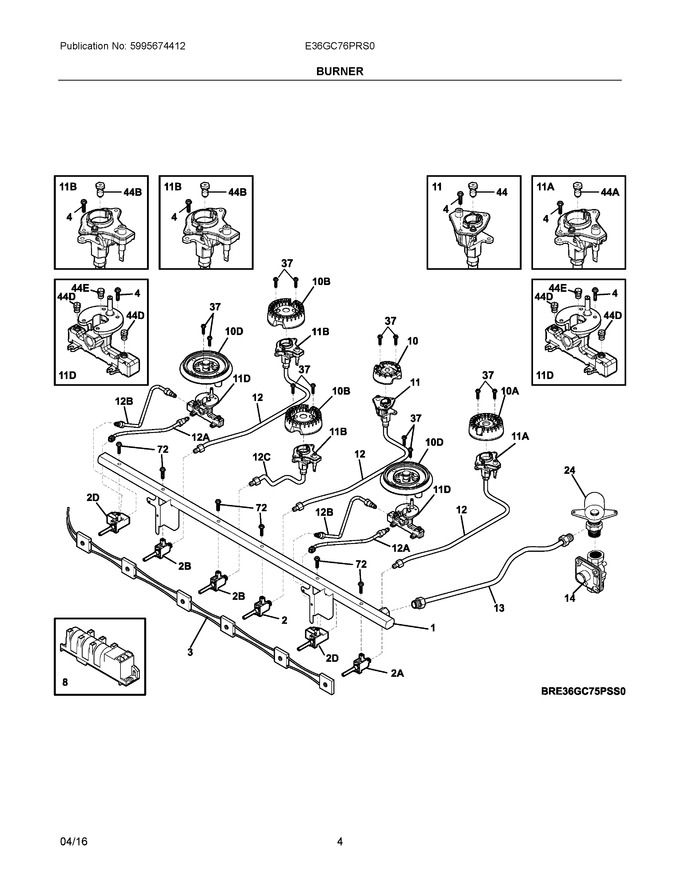

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318234314 | Manifold Pipe |
|
- | |||||
| 2 | 316536002 | Valve, Top Burner, 14k |
|
$ 78.11 | |||||
| 3 | 305595105 | Switch Assembly, Ignitor, W/harness |
|
$ 96.81 | |||||
| 4 | 316240600 | Screw, Assy Mtg, (8), Ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 8 | 808608804 | Module, Spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 11 | 316540800 | Ignitor/orifice Assy., Top Burner, 5k, W/holder |
|
$ 11.20 | |||||
| 12 | 318221383 | Tubing, 5/9.5/14k, Rear, (3) |
|
- | |||||
| 13 | 305596900 | Tube, Connection, Manifold |
|
- | |||||
| 14 | 318122705 | Regulator, Pressure |
|
$ 120.58 | |||||
| 24 | 318054010 | Elbow, Fitting |
|
$ 172.23 | |||||
| 37 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 44 | 316527504 | Orifice, Burner, 5k |
|
$ 22.68 | |||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
Immediately | $ 79.80 | ||||
| 10D | 5304519952 | Burner, Sealed, 18k, G5 (Replaces: 139029400) |
|
Immediately | $ 94.80 | ||||
| 11A | 316540700 | Ignitor/orifice Assy., Top Burner, 9.5k, W/holder |
|
$ 11.15 | |||||
| 11B | 316543204 | Ignitor/orifice Assy., Top Burner, 14k |
|
$ 12.33 | |||||
| 11DA | 316440105 | Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder |
|
$ 146.01 | |||||
| 12A | 305594700 | Tubing, 18k, (2), G5 |
|
- | |||||
| 12B | 305594800 | Tubing, 18k, (2), G5 |
|
- | |||||
| 12C | 318221384 | Tubing, 14k, Front |
|
- | |||||
| 2A | 316536006 | Valve, Top Burner, 1800 Btu, Red Stem |
|
$ 33.31 | |||||
| 2B | 316536008 | Valve, Top Burner, Purple Stem |
|
$ 60.69 | |||||
| 2D | 316272302 | Valve, Dual Burner, Twin |
|
$ 220.97 | |||||
| 44A | 316527500 | Orifice, Burner, 9.5k |
|
$ 21.40 | |||||
| 44B | 316527511 | Orifice, Burner, 14k |
|
$ 19.85 | |||||
| 44D | 316527502 | Orifice, Burner, 12k |
|
$ 22.68 | |||||
| 44E | 316527520 | Orifice, Top Burner, Simmer |
|
$ 15.60 | |||||
| NI | 318243104 | Harness, Burner Wiring |
|
$ 183.44 | |||||
| NI | 808695304 | Lp Conversion Kit |
|
$ 70.67 | |||||
| NIA | 202855101 | Holder, Cable |
|
$ 1.42 | |||||
| NIB | 131202300 | Screw, (4) (Replaces: 305376102) |
|
Immediately | $ 13.46 | ||||
| NID | 316566901 | Sleeve, Insulator |
|
$ 12.89 |
