SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

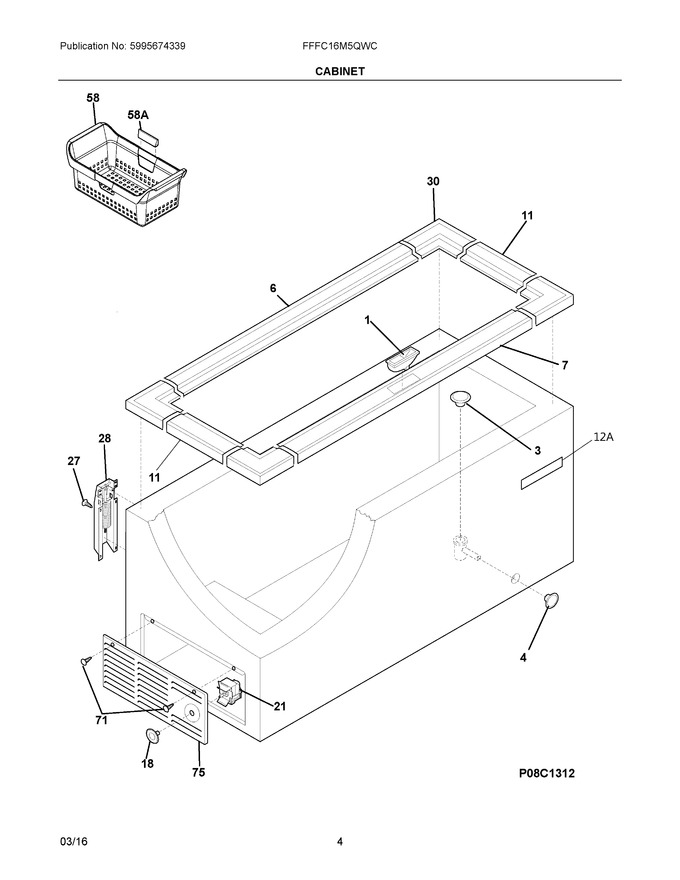

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	5304493711		Breaker, W/o Lock		Appelez-nous	-
7	5304494732		Breaker, W/lock		Appelez-nous	-
11	5304493668		Breaker, White, Chest End				$ 16.22
18	216707200		Knob, Temp Control				$ 44.10
21	297216043		Control-temperature   (Replaces: 297216036)				$ 49.16
27	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
28	297321900		Hinge Assy				$ 90.01
30	5304495365		Breaker, White, Corners				$ 19.14
58	297404101		Basket, Chest, White, Upper				$ 129.47
71	5303302714		Screw, #8-18 X .75		Appelez-nous	-
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
75	216034300		Panel-access, White		Appelez-nous	-
12A	242062801		Nameplate, White				$ 11.65
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	5304497889		Enery Guide		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NIA	808408301		Clip, Basket Handle, Blue				$ 21.27
NIC	808408304		Clip, Basket Handle, Red				$ 21.27
