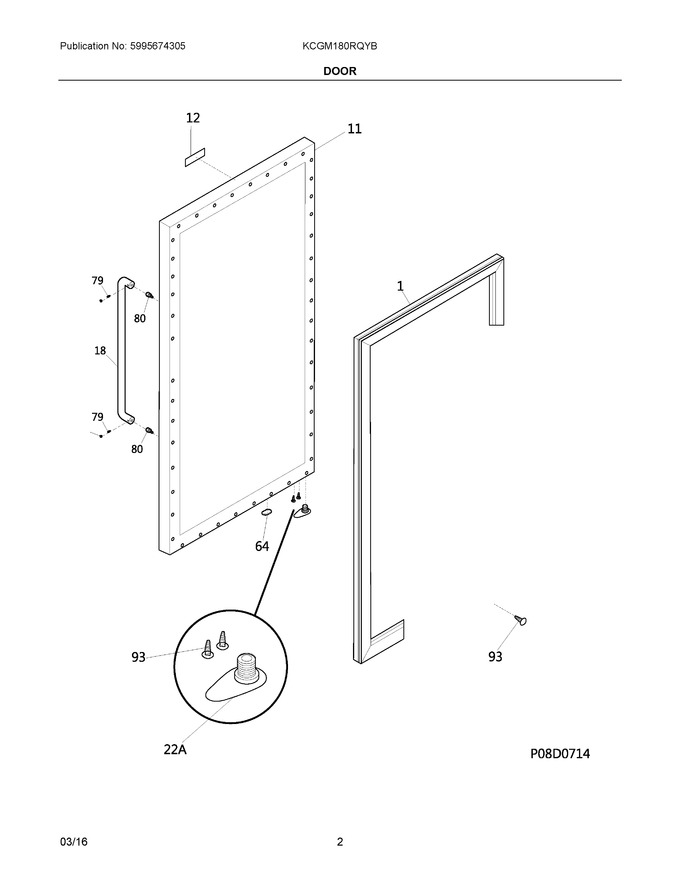

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216657201 | Gasket-door, Black |
|
$ 256.04 | |||||
| 11 | 297071600 | Door-assy, Glass |
|
$ 1,529.20 | |||||
| 12 | 297146601 | Nameplate, Commercial |
|
- | |||||
| 18 | 297314000 | Handle |
|
$ 143.88 | |||||
| 64 | 297014702 | Plug-button, Door Base |
|
$ 9.41 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| 21A | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng (Replaces: 216850900) |
|
$ 13.46 | |||||
| 22A | 216335400 | Bearing-hinge |
|
$ 67.73 | |||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 |
