SELECT A DIAGRAM

01 - Cover Sheet

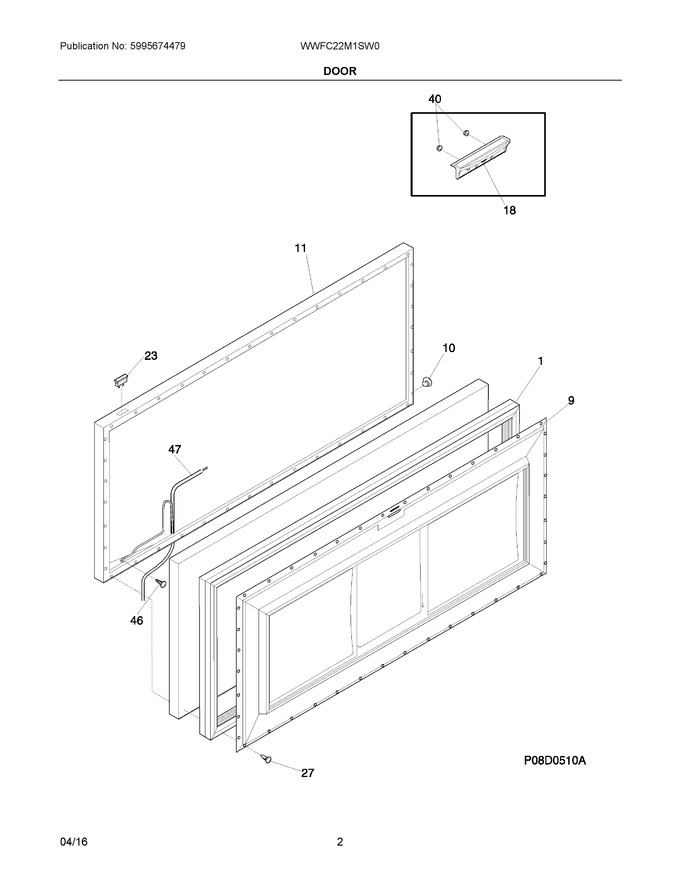

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216469311		Gasket-door, White				$ 187.21
9	297376302		Panel-inner Door, Frzr		Appelez-nous	-
10	216923001		Plug Button, 1/4", White				$ 9.87
11	216032413		Panel-outer Door, White				$ 256.46
18	297034200		Handle, Recessed, White, Incl/gasket				$ 13.00
27	5303212828		Clip, Panel Mtg				$ 16.63
46	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
NI	5303925098		Insulation				$ 120.65
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83

    View Diagram in Separate Window       Print Part List
