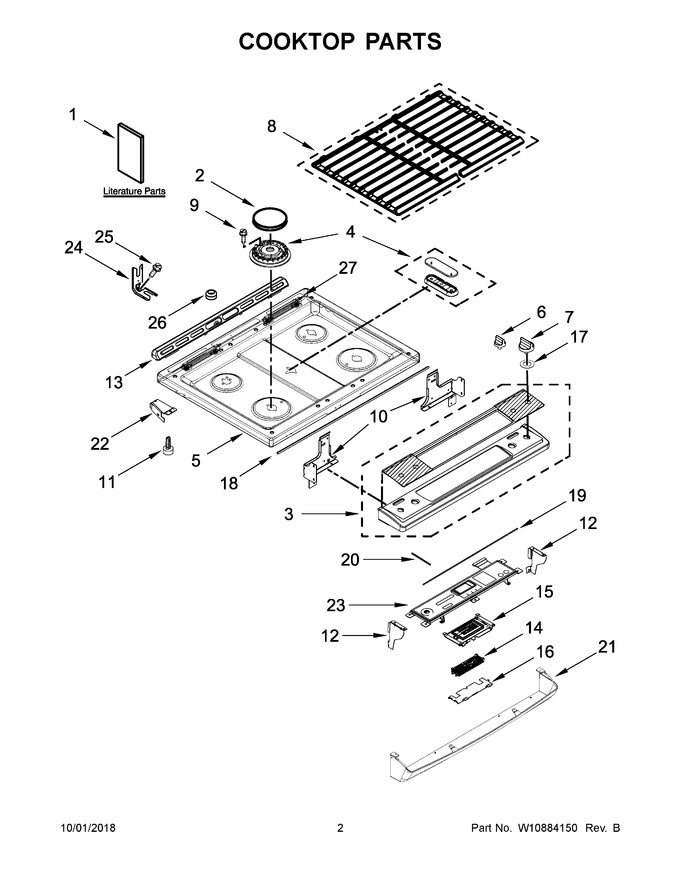

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11124007		Instructions, Installation		Appelez-nous	-
2	W11161846		Kit, Burner Cap (black)   (Replaces: W10837262)			Immediately	$ 106.37
3	W10728507		Console (black)   (Replaces: W10547079)			Immediately	$ 338.54
4	WPW10256028		Spreader, Flame (left Front & Right Front)   (Replaces: W10256028)			Immediately	$ 123.92
5	W10885066		Cooktop (includes Hinges) (black)   (Replaces: W10826650)				$ 364.82
6	W11211501		Knob (mini) (stainless)   (Replaces: W10850039)			Immediately	$ 18.46
7	W11517334		Knob (stainless)   (Replaces: W10850033)			Immediately	$ 51.86
8	W11381339		Kit, Grate (black)   (Replaces: W10889160)				$ 349.02
9	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
10	W10289170		Support, Cooktop (left)				$ 25.76
11	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
12	W10547960		Bracket, Console (left)				$ 19.90
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 175.55
14	W10885069		Electronic, Control Mrc2   (Replaces: W10759290)				$ 452.27
15	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 452.26
16	W10558372		Bracket, Control				$ 21.51
17	W11131701		Bushing (black)   (Replaces: W10739036)				$ 19.94
18	W10802441		Gasket, Console/cooktop   (Replaces: W10612719)			Immediately	$ 20.46
19	W10802457		Gasket, Console   (Replaces: W10689101)				$ 18.28
20	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 19.65
21	W11218703		Console, Lower Panel (black)   (Replaces: W10570527)			Immediately	$ 139.09
22	W10162253		Brace, Corner (left)				$ 63.54
23	W10728523		Assembly, Active Overlay (stainless (for Black Models))   (Replaces: W10145866)				$ 281.42
24	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
25	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
26	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 18.83
27	N/P		Hinge, Grate (not Serviced)		Appelez-nous	-
10A	W10289169		Support, Cooktop (right)				$ 25.76
10B	W10598048		Bracket, Console (center)				$ 22.05
12A	W10547961		Bracket, Console (right)				$ 19.90
13A	W10577780		Trim, Vent (white)				$ 195.15
1A	W11123992		Guide, Use And Care		Appelez-nous	-
1B	W10844271		Sheet, Tech		Appelez-nous	-
1C	W10844275		Diagram, Wiring		Appelez-nous	-
1D	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1E	W10400067		Guide, Quick Start (french)		Appelez-nous	-
21A	W10570528		Console, Lower Panel (white)				$ 238.47
22A	W10162252		Brace, Corner (right)				$ 67.37
23A	W10728522		Assembly, Active Overlay (white)   (Replaces: W10145867)				$ 290.15
23B	W10728529		Assembly, Active Overlay (black (for Stainless Models))   (Replaces: W10665503)				$ 280.72
3A	W10728505		Console (white)   (Replaces: W10547081)				$ 265.29
3B	W10885068		Console (stainless)   (Replaces: W10842411)				$ 818.93
4A	W10836467		Spreader, Flame (left Rear)   (Replaces: W10464795)				$ 40.82
4B	WPW10256025		Spreader, Flame (right Rear)   (Replaces: W10256025)			Immediately	$ 78.06
4C	W11162114		Spreader, Flame (center)   (Replaces: W10298664)				$ 77.06
5A	W10885067		Cooktop (includes Hinges) (white)   (Replaces: W10826651)				$ 369.08
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	W10908899		Harness, Main				$ 202.01
NI	W10580229		Wire, Ground				$ 32.76
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 30.72
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
