SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

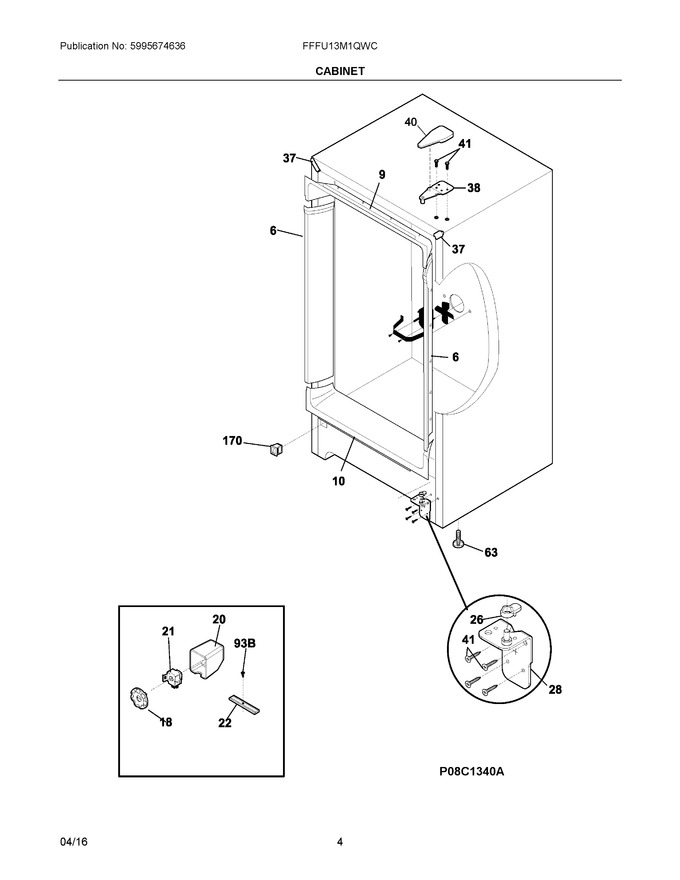

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	297435603		Breaker, U12/u14, No Lock		Appelez-nous	-
9	297381501		Breaker, Top				$ 48.91
10	297381502		Breaker, Bottom		Appelez-nous	-
18	216707200		Knob, Temp Control				$ 44.10
20	297013800		Cover-control Housing				$ 80.43
21	5304501378		Control-temperature		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, Reversible, Bottom Rh				$ 15.18
37	297273904		Trim-cabinet Corner, White, (2)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 10.13
170	297280400		Valve, Breather				$ 10.13
28A	297438300		Pin, Bottom Hinge				$ 7.23
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5304497888		Energy Guide		Appelez-nous	-
NI	5304498525		Service Data Sheet		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
