01 - Cover Sheet
02 - Door
03 - Cabinet

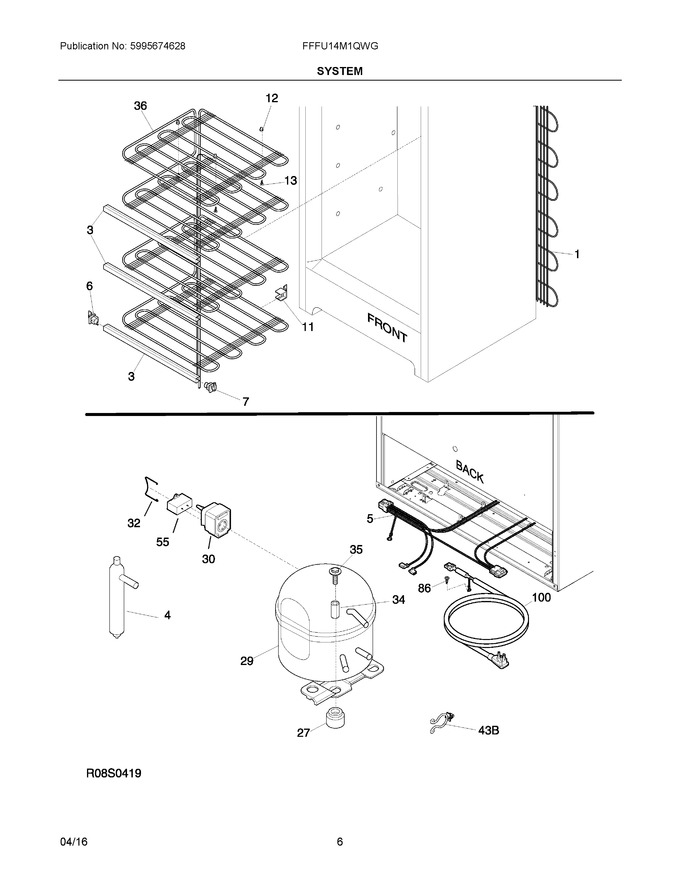

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 3 | 5304509722 | Trim-shelf, White, Evaporator (Replaces: 216847804) |
|
$ 28.20 | |||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 31.67 | ||||
| 5 | 297171900 | Harness-main, W/light |
|
$ 66.34 | |||||
| 6 | 297001600 | Support-shelf, Front Lh |
|
$ 18.08 | |||||
| 7 | 297001500 | Support-shelf, Front Rh |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw, Hex Sems, 8-18ab X 1.00, Evap |
|
- | |||||
| 27 | 216498900 | Grommet, Compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 29 | 5304507767 | Compressor, Sfj36c (Replaces: 297437000) |
|
$ 726.41 | |||||
| 30 | 297259508 | Controller, Compressor |
|
$ 57.08 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 17.01 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 297368500 | Bolt, Compressor |
|
- | |||||
| 36 | 297234400 | Evaporator, Tubing Assy |
|
$ 369.42 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 28.77 | ||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| 100 | 297366805 | Cord, Power (Replaces: 297366804) |
|
$ 68.68 | |||||
| 43B | 297315800 | Clip, Wire |
|
$ 10.13 | |||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 |
