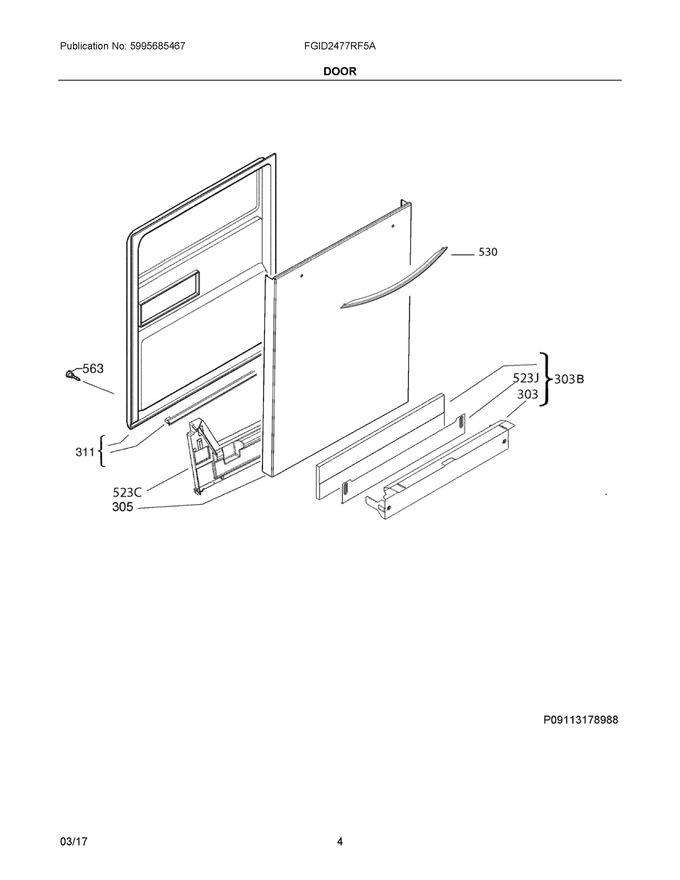

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 303 | A02025002 | Kickplate, Black (Replaces: 807110303) |
|
$ 226.66 | |||||
| 305 | 8581174951054 | Outer Door, Stainless (Replaces: 117495101) |
|
Immediately | $ 164.80 | ||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 5304532242 | Handle, Towel Bar, Stainless (Replaces: 154724905) |
|
$ 121.40 | |||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete |
|
$ 16.34 | |||||
| 303B | A02025002 | Kickplate, Assembly, Black, W/cover & Insul |
|
$ 226.66 | |||||
| 523C | 807194801 | Support, Kickplate |
|
$ 129.41 | |||||
| 523J | 807110203 | Cover, Sliding, Black, Kickplate |
|
$ 148.89 | |||||
| NI | 405530675 | Plate, Door Handle, (2) |
|
- | |||||
| NI | 5304533456 | Screw, Kickplate, 3-5 X 9, (2) (Replaces: 405530674) |
|
$ 3.50 | |||||
| NI | 405536396 | Screw, Kit, M5 X 8, 5 Ph, Top, (2 Pcs), Kickplate |
|
$ 14.18 | |||||
| NI | 405530684 | Nut, Door Handle, (2) |
|
$ 52.88 |
