01 - Cover Sheet
02 - Cooktop, Burner And Grate Parts

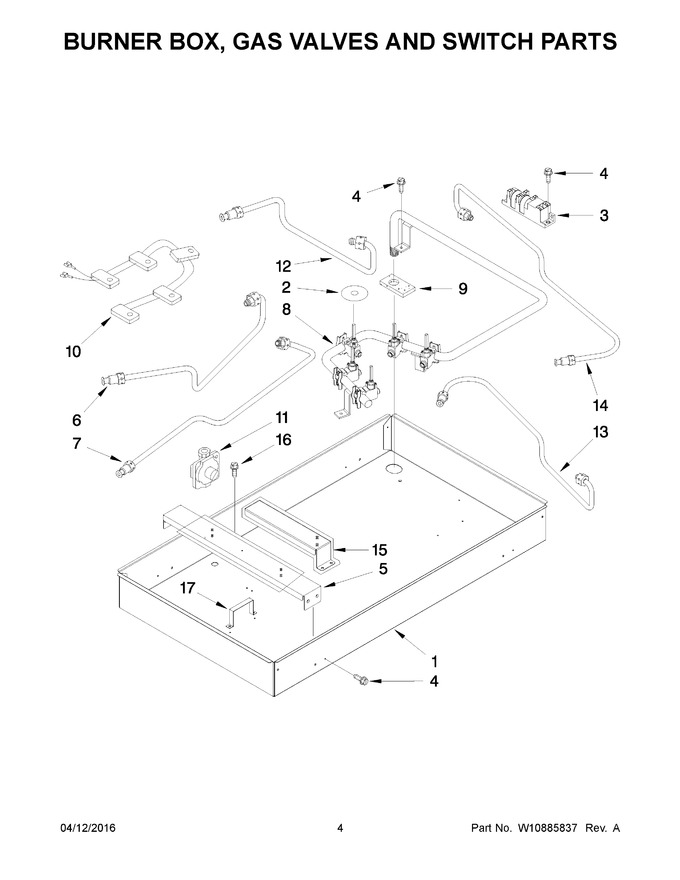

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10181017 | Box, Burner |
|
- | |||||
| 2 | WP74007705 | Grommet (Replaces: 8008P065-60) |
|
Immediately | $ 6.80 | ||||
| 3 | WP7431P066-60 | Module, Spark (Replaces: 7431P066-60) |
|
Immediately | $ 285.00 | ||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F755-51 | Bracket, Orifice Holder |
|
$ 65.96 | |||||
| 6 | 7506P362-60 | Tubing, Gas (left Front) |
|
$ 76.98 | |||||
| 7 | 7506P363-60 | Tubing, Gas (left Rear) |
|
- | |||||
| 8 | 7513P522-60 | Assembly, Manifold |
|
- | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 10 | WPW10184468 | Harness & Switches (Replaces: W10184468) |
|
$ 215.27 | |||||
| 11 | W11087445 | Regulator, Pressure (Replaces: 7510P093-60) |
|
Immediately | $ 177.34 | ||||
| 12 | 7506P364-60 | Tubing, Gas (center) |
|
- | |||||
| 13 | 7506P365-60 | Tubing, Gas (right Front) |
|
- | |||||
| 14 | 7506P366-60 | Tubing, Gas (right Rear) |
|
- | |||||
| 15 | 3801F878-51 | Bracket, Center Orifice Holder |
|
- | |||||
| 16 | WP71001171 | Screw (Replaces: 7101P460-60) |
|
$ 6.26 | |||||
| 17 | 3801F933-51 | Bracket, Support |
|
- |
