SELECT A DIAGRAM

01 - Cover Sheet

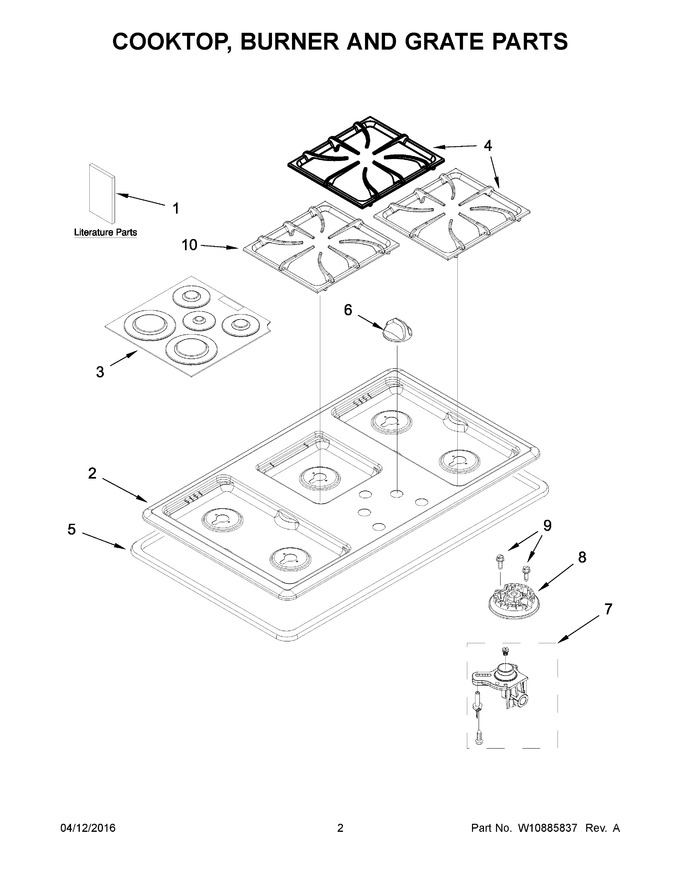

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10852770		Guide, Use & Care		Appelez-nous	-
2	W10886798		Cooktop (black)   (Replaces: W10828608)		Appelez-nous	-
3	W10218219		Kit, Burner Cap (black)		Appelez-nous	-
4	7518P464-60		Grate, Burner (black)				$ 76.35
5	8270P107-60		Seal, Foam		Appelez-nous	-
6	W10828610		Knob, Control (black)			Immediately	$ 21.78
7	WP7527P026-60		Holder, Orifice (left Front, Center & Right Rear)   (Replaces: 7527P026-60)			Immediately	$ 95.68
8	WPW10406797		Head, Burner   (Replaces: W10406797)				$ 79.64
9	WP3368921		Screw, Burner Head   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	7518P467-60		Grate, Center (black)		Appelez-nous	-
10A	7518P468-60		Grate, Center (gray)		Appelez-nous	-
1A	W10187822		Instructions, Installation		Appelez-nous	-
1B	W10204418		Diagram, Wiring		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10886799		Cooktop (white)   (Replaces: W10828613)		Appelez-nous	-
3A	W10237938		Kit, Burner Cap (gray)		Appelez-nous	-
4A	7518P465-60		Grate, Burner (gray)				$ 75.17
6A	W10828611		Knob, Control (white)				$ 21.16
7A	WP74007691		Holder, Orifice (left Rear)   (Replaces: 7527P007-60)			Immediately	$ 107.26
7B	WP7527P028-60		Holder, Orifice (right Front)   (Replaces: 7527P028-60)			Immediately	$ 100.76
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP7509P103-60		Kit, Lp Orifice   (Replaces: 7509P103-60)				$ 129.47
NI	W10173479		Harness, Spark Cooktop				$ 111.11
NI	3188867		Cord, Power   (Replaces: 7402P087-60)				$ 168.08

    View Diagram in Separate Window       Print Part List
