Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10567657 Dishrack, Upper Special Order $ 186.86

2 W10567634 Adapter Special Order $ 25.61

3 W10567633 Manifold Special Order $ 27.76

4 W11684607 Sprayarm   (Replaces: W10567631) In-Stock Immediately $ 70.67

5 W10567632 Mount, Sprayarm Special Order $ 22.47

6 W10717678 Dishrack, Lower Special Order $ 267.20

7 W10567655 Basket, Silverware Special Order $ 92.20

8 W10567656 Cupshelf Special Order $ 21.26

9 W11246856 Wheel, Upper Rack   (Replaces: W10883779) Special Order $ 27.36

10 W11402124 Wheel, Lower Rack   (Replaces: W10883780) Special Order $ 27.84


    View Diagram in Separate Window     Print Icon   Print Part List

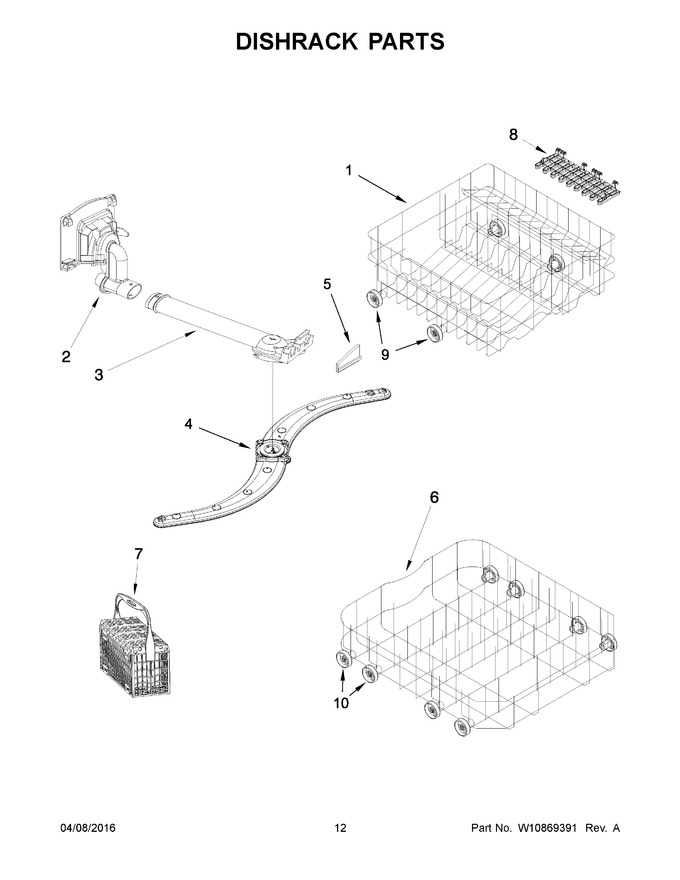

Diagram for WDF550SAFB0
