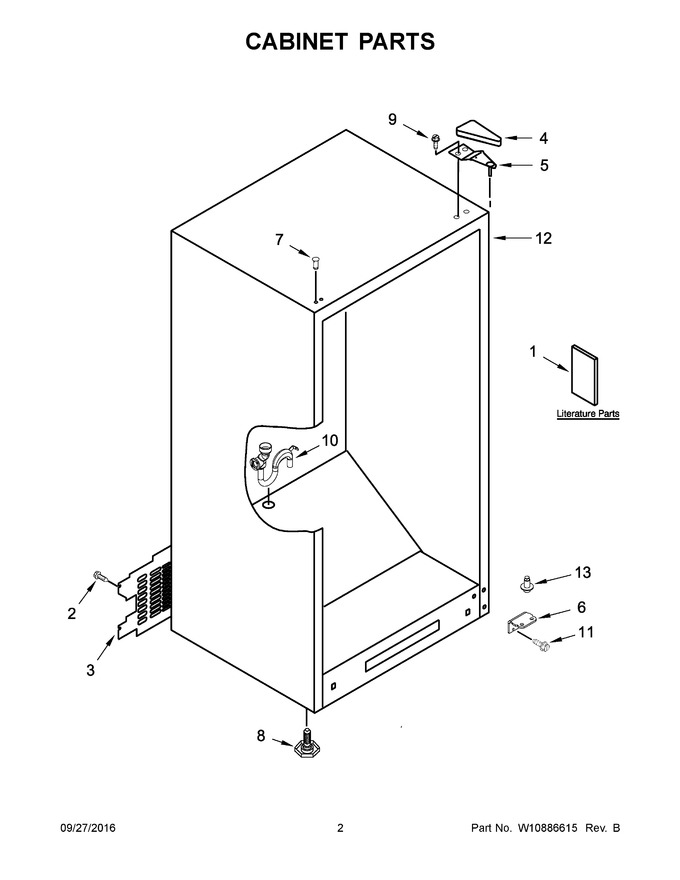

02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10668404		Use & Care Guide		Appelez-nous	-
1	W10882912		Use & Care Guide		Appelez-nous	-
2	W11233072		Screw   (Replaces: 3-80732-014)			Immediately	$ 12.62
3	W10574323		Cover, Unit				$ 79.88
4	WP2213360		Cover, Hinge (white)   (Replaces: 2213360)				$ 17.31
5	WP2261963		Assembly, Top Hinge   (Replaces: 2261963)			Immediately	$ 89.51
6	W10574264		Hinge Plate, Bottom (white)				$ 141.96
7	WPW10520304		Plug, Hole (white)   (Replaces: W10520304)			Immediately	$ 16.47
8	WP3-82710-001		Leg, Leveler   (Replaces: 3-82710-001)			Immediately	$ 18.29
9	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
10	W11673435		Drain Tube   (Replaces: W10717194)			Immediately	$ 43.70
11	67006564		Screw   (Replaces: 12991302)			Immediately	$ 6.92
11	67006564		Screw   (Replaces: W10709365)			Immediately	$ 6.92
12	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
13	W11676609		Hinge Pin, Lower   (Replaces: W10574325)				$ 12.76
1A	W10863678		Energy Guide		Appelez-nous	-
1B	W10653921		Tech Sheet		Appelez-nous	-
