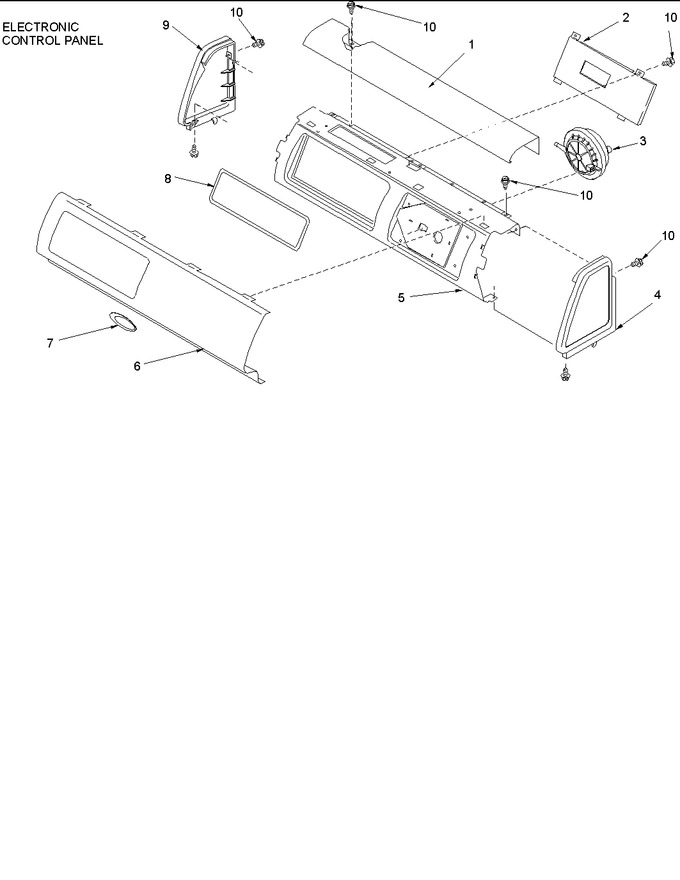

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D505808W | Cover, Top (wht) (Replaces: 503674W) |
|
$ 91.43 | |||||
| 1 | 503674C | Cover, Top (bsq) |
|
- | |||||
| 2 | 40081201CP | Assy,elec Con & Over(bisque) |
|
- | |||||
| 2 | 40081201WP | Assy,elec Cont & Overlay(white |
|
- | |||||
| 3 | 40082401 | Switch,pressure-3 Level |
|
- | |||||
| 4 | 40012701W | Endcap (rt-wht) |
|
- | |||||
| 5 | 40039603 | Panel,supp Control |
|
- | |||||
| 6 | 40077401W | Panel,graphic-elec Wash(white) |
|
- | |||||
| 6 | 40091301C | Panel,graphic(bisque) |
|
- | |||||
| 7 | 40083301 | Medallion |
|
- | |||||
| 8 | 40074001 | Gasket, Electronic |
|
- | |||||
| 9 | 40012702W | Endcap (lt-wht) |
|
- | |||||
| 10 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
Immediately | $ 7.04 | ||||
| NI | 40100901 | Assy,wire Harness Hood |
|
- | |||||
| NI | 40100102 | Assy, Wire Harness Base |
|
- |
