SELECT A DIAGRAM

01 - Door


02 - Oven


03 - Supplemental Information

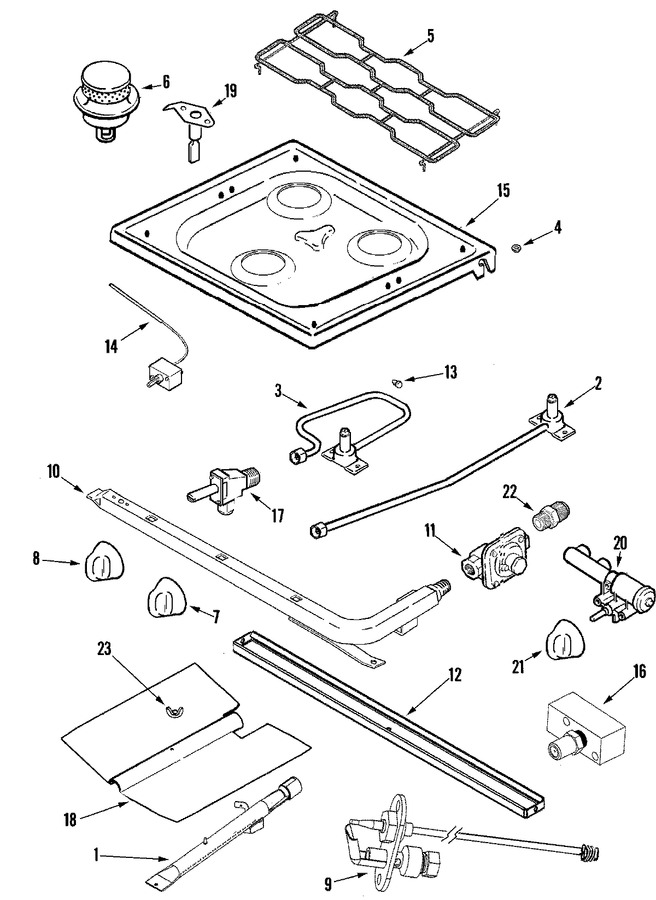

04 - Top & Gas Controls


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98
1	74009853		Burner, Oven (w/shutter)	10	Appelez-nous	-
2	74003931		Fitting, Orifice (rear)	10	Appelez-nous	-
3	74003930		Fitting, Orifice (frt)	10	Appelez-nous	-
4	Y8007P02060		Grommet	10			$ 5.88
4	WPW10308285		Bushing/washer Asy   (Replaces: 8007P052-60)	12			$ 6.98
5	7518P417-60		Grate, Sealed Bnr (blk)	12			$ 83.63
5	74007304		Grate, (blk) Sealed Burner	10	Appelez-nous	-
6	74003967		Sealed Burner Assy(blk-rv)subs	10	Appelez-nous	-
7	74003941		Knob, Burner (blk)	10	Appelez-nous	-
7	74003942		Knob, Burner (blk)	10			$ 17.80
8	WP7731P182-60		Knob, Thermostat (blk)   (Replaces: 74009858)	10			$ 6.47
9	74009852		Burner, Pilot Rv (16)	10			$ 90.89
9	74006334		Pilot, Oven	10			$ 12.79
10	74009856		Pipe, Manifold	10	Appelez-nous	-
11	74004235		Regulator, Pressure	10	Appelez-nous	-
12	74009851		Support, Oven Burner	10	Appelez-nous	-
13	8003P008-60		Bumper	10	Appelez-nous	-
14	74009850		Tubing 1/4	10	Appelez-nous	-
14	74009854		Tubing 3/16	10	Appelez-nous	-
14	WP7515P046-60		Thermostat   (Replaces: 74009855)	10			$ 269.95
14	7507P049-60		Flange, T Stat	10	Appelez-nous	-
15	2001F301-50		Top, Main (stl)	12	Appelez-nous	-
15	74007299		Top, Main (stl)	10	Appelez-nous	-
16	74009864		Elbow Block Assy.	10	Appelez-nous	-
17	12002248		Kit, Valve & Screw (mueller)	10	Appelez-nous	-
17	12002247		Kit, Valve & Screw (mueller)	10	Appelez-nous	-
18	74009848		Baffle, Rv Burner	10	Appelez-nous	-
19	74004053		Igniter, Top Burner	10		Immediately	$ 24.25
20	74003946		Igniter, Top Burner	10	Appelez-nous	-
20	74003947		Wires, Igniter	10	Appelez-nous	-
21	74003944		Knob, Igniter (blk)	10		Immediately	$ 15.89
22	74004234		Fitting, Half Union	10			$ 49.91
23	7103P030-60		Nut, Wing	10			$ 6.37

    View Diagram in Separate Window       Print Part List
