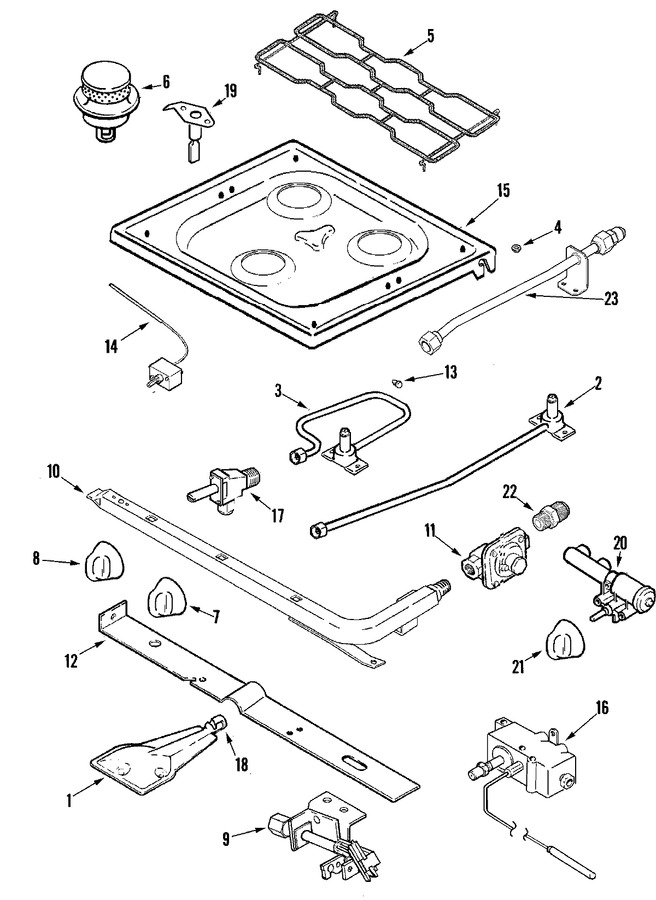

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door
02 - Oven
03 - Top & Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003343 | Burner, Oven | 10 |
|
- | ||||
| 2 | 74003931 | Fitting, Orifice (rear) | 10 |
|
- | ||||
| 3 | 74003930 | Fitting, Orifice (frt) | 10 |
|
- | ||||
| 4 | Y8007P02060 | Grommet | 10 |
|
$ 5.88 | ||||
| 5 | 74007304 | Grate, (blk) Sealed Burner | 10 |
|
- | ||||
| 6 | 74003967 | Sealed Burner Assy(blk-rv)subs | 10 |
|
- | ||||
| 7 | 74003942 | Knob, Burner (blk) | 10 |
|
$ 17.80 | ||||
| 7 | 74003941 | Knob, Burner (blk) | 10 |
|
- | ||||
| 8 | 74004645 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 9 | 74006334 | Pilot, Oven | 10 |
|
$ 12.79 | ||||
| 9 | 1555261K | Nut & Ferrule (3/16``) | 10 |
|
- | ||||
| 10 | 74004360 | Pipe, Manifold | 10 |
|
- | ||||
| 11 | 74004235 | Regulator, Pressure | 10 |
|
- | ||||
| 12 | 74001834 | Support, Oven Burner | 10 |
|
- | ||||
| 13 | 8003P008-60 | Bumper | 10 |
|
- | ||||
| 14 | 1555222 | Nut, Loxit (3/16``) | 10 |
|
- | ||||
| 14 | 74006336 | Tubing 3/16 | 10 |
|
- | ||||
| 14 | 74006338 | Tubing 1/4 | 10 |
|
- | ||||
| 14 | 1555280K | Nut & Ferrule 1/4`` Kit | 10 |
|
- | ||||
| 14 | 74006332 | Thermostat | 10 |
|
- | ||||
| 15 | 74003928 | Top, Main (blk) | 10 |
|
- | ||||
| 16 | 1555279 | Nut, 1/4`` Loxit | 10 |
|
- | ||||
| 16 | 74006333 | Valve, Oven | 10 |
|
- | ||||
| 17 | 74004643 | Valve, Top Burner | 10 |
|
- | ||||
| 17 | 12002247 | Kit, Valve & Screw (mueller) | 11 |
|
- | ||||
| 17 | 74004644 | Valve, Top Burner | 10 |
|
- | ||||
| 17 | 12002248 | Kit, Valve & Screw (mueller) | 11 |
|
- | ||||
| 17 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 18 | 3411F003-34 | Mixer, Air | 10 |
|
- | ||||
| 19 | 74004053 | Igniter, Top Burner | 10 |
|
Immediately | $ 24.25 | |||
| 20 | 74003946 | Igniter, Top Burner | 10 |
|
- | ||||
| 20 | 74003947 | Wires, Igniter | 10 |
|
- | ||||
| 21 | 74003944 | Knob, Igniter (blk) | 10 |
|
Immediately | $ 15.89 | |||
| 22 | 74004234 | Fitting, Half Union | 10 |
|
$ 49.91 | ||||
| 23 | 74004641 | Fitting, Copper Tubing | 10 |
|
- | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| NI | 74007269 | Manual, Use & Care | 10 |
|
- |
