01 - Gas Controls

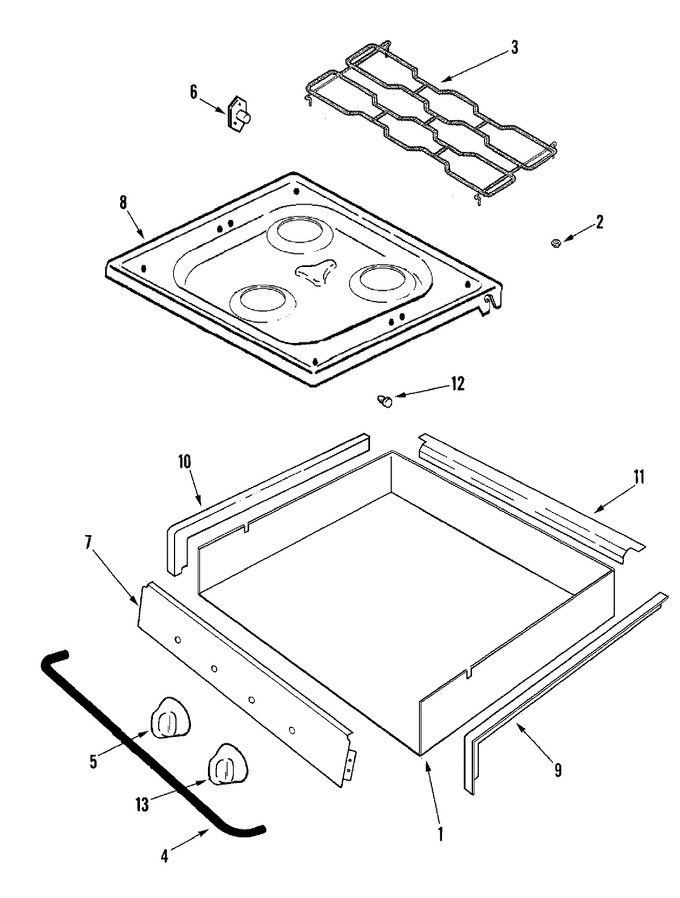

02 - Top & Burner Box
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005024 | Box, Burner Asy | 10 |
|
- | ||||
| 2 | Y8007P02060 | Grommet | 10 |
|
$ 5.88 | ||||
| 2 | WPW10308285 | Bushing/washer Asy (Replaces: 8007P052-60) | 14 |
|
$ 6.98 | ||||
| 3 | 7518P417-60 | Grate, Sealed Bnr (blk) | 14 |
|
$ 83.63 | ||||
| 3 | 74007304 | Grate, (blk) Sealed Burner | 10 |
|
- | ||||
| 4 | 3609F006-70 | Guard, Fabric | 10 |
|
- | ||||
| 5 | 74003941 | Knob, Burner (blk) | 10 |
|
- | ||||
| 5 | 74003942 | Knob, Burner (blk) | 10 |
|
$ 17.80 | ||||
| 6 | 7101P301-60 | Screw No.6 X 1/2 | 10 |
|
- | ||||
| 6 | 7103P109-60 | T-nut (rv Hinge) | 10 |
|
- | ||||
| 7 | 74007330 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 8 | 2001F300-09 | Top, Main (blk) | 14 |
|
- | ||||
| 8 | 74007300 | Top, Main (blk) | 10 |
|
- | ||||
| 9 | 74002839 | Trim (rt-blk) | 10 |
|
- | ||||
| 10 | 74002840 | Trim (lt-blk) | 10 |
|
- | ||||
| 11 | 74002841 | Trim, Rear (blk) | 10 |
|
- | ||||
| 11 | 74007324 | Trim, Rear (bsq) | 10 |
|
- | ||||
| 11 | 74007323 | Trim, Rear (wht) | 10 |
|
- | ||||
| 12 | 8003P008-60 | Bumper | 10 |
|
- | ||||
| 13 | 74003944 | Knob, Igniter (blk) | 10 |
|
Immediately | $ 15.89 | |||
| NI | 8110P272-60 | Manual, Use & Care | 13 |
|
- | ||||
| NI | 74007269 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16026158 | Tech Sht, Range, Gas, Rv | 10 |
|
- |
