01 - Cooktop Parts

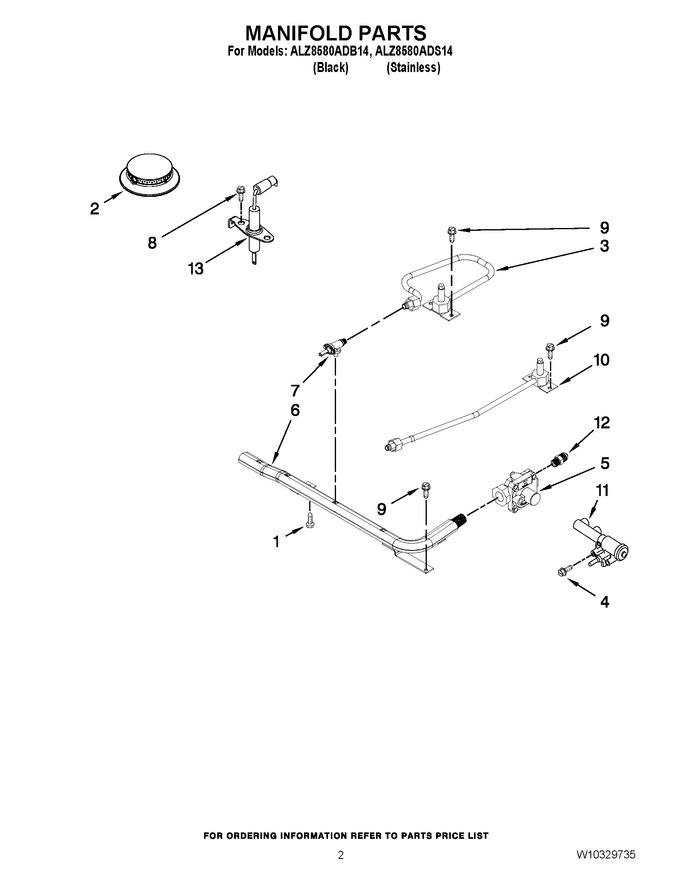

02 - Manifold Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P639-60 | Screw |
|
$ 5.53 | |||||
| 2 | WP3412D025-09 | Burner (Replaces: 3412D025-09) |
|
$ 170.85 | |||||
| 3 | 7507P253-60 | Fitting, Orifice (front) |
|
- | |||||
| 4 | WPY706189 | Screw (Replaces: 7101P347-60) |
|
Immediately | $ 6.47 | ||||
| 5 | 7510P078-60 | Regulator |
|
- | |||||
| 6 | 7513P476-60 | Pipe, Manifold |
|
- | |||||
| 7 | 7502P525-60 | Valve, Burner (front) |
|
- | |||||
| 7 | 7502P526-60 | Valve, Burner (lr, Rr) |
|
- | |||||
| 8 | WP59002061 | Screw (Replaces: 7101P335-60) |
|
$ 6.98 | |||||
| 9 | 7101P229-60 | Screw |
|
- | |||||
| 10 | 7507P401-60 | Fitting, Orifice (lr, Rr) |
|
- | |||||
| 11 | 7432P097-60 | Ignitor, Piezo |
|
$ 75.36 | |||||
| 12 | 7507P280-60 | Fitting, Union |
|
- | |||||
| 13 | 74004053 | Electrode, Top Burner (Replaces: 7432P100-60) |
|
Immediately | $ 24.25 |
